Lymphoproliferative disorder involving body fluid: diagnostic approaches and roles of ancillary studies

Body fluid rich in small/medium-sized lymphoid cells

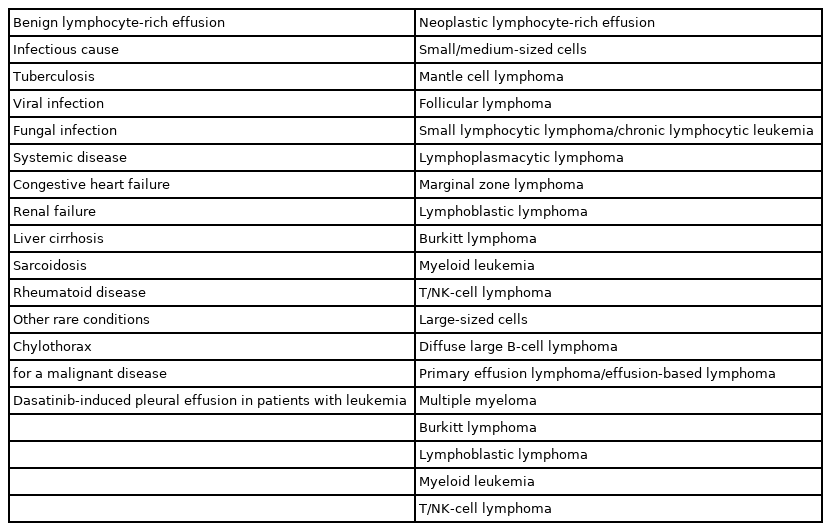

When dealing with the effusions having predominantly small/medium-sized cells, the distinction between neoplastic conditions from reactive lymphocytosis is often very difficult. Numerous physiologic and pathologic processes can produce reactive lymphocytosis, and commonly encountered causes are described in Table 2 and Fig. 2A–C. Careful review of clinical history should be taken to rule out the possibilities of reactive lymphocytosis; conversely, if the patients have history of previous or suspected concurrent LPD, this warrants further investigation with ancillary studies.

Fig. 2.

Differential diagnosis of small/medium-sized cell predominant effusion. Reactive lymphocytosis due to infectious process (A, ascitic fluid from a 64-year-old female with peritoneal tuberculosis) or hemodynamic condition (B, pleural fluid from a 59-year-old male who underwent lung transplantation) result in producing small/medium-sized cells. Chylothorax is another uncommon condition showing small/medium-sized lymphocyte-predominant body fluid (C, pleural fluid from a 50-year-old male). In neoplastic conditions, the overall cellularity of small/medium-sized cells are very high and often accompanied by apoptotic bodies, as shown in the pericardial fluid from a 72-year-old male with known mantle cell lymphoma (D) and ascitic fluid from a 46-year-old male with Burkitt lymphoma (E, inset showing H&E staining of the tumor). The site of fluid accumulation also gives a clue, especially cerebrospinal fluid (CSF) where high cellular composition almost always suggests a pathologic condition (F, CSF from a 42-year-old female with B-acute lymphoblastic leukemia).

Cytomorphological clues indicating a malignant process in small/medium-sized effusions are suggested in Table 3. Cellular atypia usually refers to the following features: irregular nuclear membrane, nuclear folding or cleavage, coarse chromatin or unusual chromatin patterns (e.g., clotted or soccer-ball-like) [5].

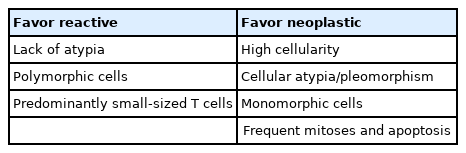

Table 3.

Cytomorphologic clues for distinction between reactive and neoplastic process in small/medium-sized cell predominant fluids

However, one should note that these atypical features are hardly recognizable in small/medium-sized lymphocytes in effusion cytology, especially on liquid-based cytology (LBC) specimens [20] where the cells and their nuclei appear smaller than in conventional smears. Nevertheless, when there is significant and obvious cellular atypia in the small/medium-sized cell predominant effusions, further workup including ancillary tests is strongly recommended.

On the other hand, monomorphic appearance of small/medium- sized lymphoid cells with high cellularity usually represents a neoplastic process (Fig. 2D–F), therefore justifying the use of ancillary tests even in the absence of clinical history of LPD. In addition, frequent apoptotic figures also indicate a likelihood of malignant fluid (Fig. 2E).

When small/medium-sized lymphoid cells are dispersed in the polymorphous cellular background, it usually suggests benign reactive process, especially when combined with large centroblasts, immunoblasts, and plasma cells. However, when medium to large plasmacytoid cells are predominant cellular components, outnumbering all other cell types, careful consideration should be taken to rule out the possibility of plasma cell neoplasm. Thorough review of clinical features and assessment of nuclear atypia would aid in the differential diagnosis.

Body fluid rich in large-sized lymphoid cells

Large cell dominant (particularly monomorphic) lymphoid effusions almost always suggest pathologic conditions, therefore diagnostic steps on these fluids are easier to approach. In many cases, large cells show significant cytologic atypia and the background usually exhibit degenerated cell debris, necrosis and apoptosis. DLBCL is the most common cause of secondary large cell predominant lymphoid effusions, and often suggest poor prognosis (Fig. 3A, B) [7]. Less common causes of body fluids rich in large cells include leukemic conditions (Fig. 3C), and T- or natural killer (NK)-cell lineage lymphomas of certain entities which often show twisted, convoluted or multi-lobated nuclei and nuclear folding or grooving (Fig. 3D). In many cases, the diagnosis of large cell predominant lymphoid effusions is followed by ancillary studies for accurate subtyping, if required, and prognostic stratification, which will be further discussed in ancillary tests section.

Fig. 3.

Differential diagnosis of large-sized cell predominant effusion. Ascitic fluid drained from a 60-year-old male patient with heavily treated diffuse large B-cell lymphoma (DLBCL) has numerous large, atypical cells in the background of apoptotic bodies (A). Another malignant effusion from a DLBCL patient show predominantly immunoblastic morphology, highlighted by central, prominent nucleoli (B). A 42-year-old male with known myeloid sarcoma presented with pleural fluid, where numerous atypical cells were observed, representing a rare cause of malignant effusion (C). Another rare cause of malignant pleural effusion included a 74-year-old female patient with monomorphic epitheliotropic intestinal T-cell lymphoma involving colon and lung (D). Note the peculiar cellular appearance including folded nuclei and cytoplasmic tails (D, inset).

Primary effusion lymphoma

PEL is a unique type of large B-cell lymphoma presenting solely as serous effusion in body cavity without tumor masses, lymphadenopathy or organomegaly, usually associated with immunodeficient condition (as represented by human immunodeficiency virus [HIV] infection). PEL is almost always associated with human herpes virus 8 (HHV8) and may be co-infected with Epstein-Barr virus (EBV). It usually confers extremely unfavorable prognosis, with expected median survival of less than 6 months [21]. According to a recent nationwide study, PEL accounts for 0.1% of all malignant lymphoma in Republic of Korea [21,22]. Typically, PEL is composed of large size B-cell with immunoblastic, plasmablastic or anaplastic morphology and shows post-germinal center plasmablastic differentiation. A typical example is shown in the Fig. 4A. A 79-year-old male patient with a history of prostate cancer presented with dyspnea on exertion, where large amount of pleural effusion was noted. On systemic work-up, there was no evidence of solid tumor mass or lymphadenopathy. Drained pleural fluid was composed of numerous large lymphoid cells with many apoptotic bodies, and subsequent ICC on CB revealed CD45-positive, CD20-negative, CD38-positive and HHV8-positive immunophenotype, consistent with PEL.

Fig. 4.

Primary effusion lymphoma and effusion-based large B-cell lymphoma. For the differential diagnosis of large-sized cell dominant fluid effusion, immunocytochemistry was performed, which revealed immunophenotype consistent with primary effusion lymphoma (A). A case of effusion-based large B-cell lymphoma, also known as type II primary effusion lymphoma, is depicted (B). Note the distinct immunophenotype including negativity for human herpes virus 8 (HHV8) and Epstein-Barr virus (EBV) in situ hybridization.

Recently, further subtyping of PEL was suggested, namely PEL type I and type II [23]. In contrast to the classic type I PEL, type II PEL (also called effusion-based lymphoma) is characterized by frequent expression of pan B-cell markers (e.g., CD20 and CD79a) and less plasmablastic differentiation; most importantly, type II is often HHV8-negative and rarely associated with HIV. Clinically, type II PEL is rather associated with medial conditions which lead to fluid overload states, including hepatitis C viral infection. We also experienced a case of HHV8-negative effusionbased large B-cell lymphoma (Fig. 4B). Type II PEL also confers poor prognosis [23-25], despite a little better than the type I.

Dasatinib-induced effusion

Another unique entity presenting as body cavity-based lymphocyte- rich effusion is dasatinib-induced effusion. Dasatinib is the second-generation tyrosine kinase inhibitor used for the treatment of patients with BCR-ABL translocation positive chronic myelogenous leukemia (CML) [26]. The abnormal accumulation of body fluid occurs in about 20% to 40% of patients with CML receiving dasatinib, where severe forms develop in 3% to 7% of patients [27,28]. The effusion is composed of clonal proliferation of cytotoxic T- or NK-cells. Although the pathogenesis is unclear, several hypotheses are suggested including increased vascular permeability due to kinase inhibition or immune-mediated reaction [27]. Temporary reduction of dasatinib dosage or short-term steroid therapy usually alleviate the effusion, therefore, it is very important to recognize the lympho-dominant nature of the fluid, thus, not to be confused with the secondary leukemic involvement in patients with CML treated with dasatinib.

Breast implant associated anaplastic large cell lymphoma

Breast implant associated anaplastic large cell lymphoma (BIALCL) is a rare type of non-Hodgkin T-cell lymphoma occurring in patients who underwent breast augmentation procedure [29-31]. About two thirds of patients present with effusion around the implant, after 9 years from implantation on average [29]. Aspiration fluid cytology evaluation is an effective and minimally invasive method for the diagnosis of BI-ALCL [32].

Aspirated fluid from the patients with BI-ALCL usually shows hypercellular population of large atypical lymphoid cells with lobulated nuclei [33]. Cytoplasmic vacuolizations can be extensive, and necrotic or fibrinoid background can be a distinguishing feature from ‘benign seroma’ composed of transudate fluid. When BI-ALCL is suspected, CB preparation is recommended for ancillary studies [33].

Concerns regarding the cytology preparation

Body fluid specimen drawn from the patients can be processed for adequate evaluation using variable methods including conventional smears, cytospins, CBs and LBC [34]. Most of the reports comparing the diagnostic performance of variable preparations showed that the newer technology—LBC—is comparable to that of conventional methods [34-37]. Specifically, LBC usually result in better cell yield, provide easier examination since cells are evenly dispersed in a small area, with minimal drying artifact and erythrocytes obscuring examination. However, some technical disadvantages of LBC preparation should be kept in mind. During the process, morphologic alterations including cell/nuclear size shrinkage and architecture disruption can occur [38]. Despite these disadvantages, stored LBC material can be processed for CBs, immunostainings and molecular genetic analyses up to 3 or 4 months [34], therefore, LBC preparation is a preferred method with many additional advantages with comparable diagnostic efficacy.

CB and hematoxylin and eosin stain

When dealing with effusions from patients with known history or clinical suspicion of LPD, or those rich in large-sized lymphoid cells, it is important to preserve a portion of specimen to establish CB with appropriate preparation method. Since the most of procedures in pathology laboratories are based on the use of formalin fixed paraffin embedded (FFPE), CBs can readily be handled with ease. In addition, CB specimens retain the cytomorphologic features and antigenicity for further microscopic examination and ICC studies [39,40].

Immunocytochemistry

ICC is the most commonly used ancillary study for the diagnosis of lymphocyte-rich effusion. The ICC stains retain the cytomorphologic features and expression of certain markers help the confirmatory diagnosis in some entities, i.e., HHV8 expression in PELs. In many cases, panels of multiple items including lineage markers are required for the diagnosis of LPD in effusion cytology.

Fig. 5A shows pleural effusion fluid from a 77-year-old man, where medium-sized lymphoid cells were predominant. CB was prepared and subsequent ICC revealed CD20-positivity, suggesting the possibility of B-cell lymphoma. The cells were negative for cyclin D1 but SOX11 positive, rendering the diagnosis of lymphoma, consistent with MCL. Fig. 5B is another pleural fluid specimen drained from a 46-year-old male, and numerous MUM1 positive plasmacytoid cells having abundant cytoplasm and eccentric nuclei are observed. The cells were diffusely positive for lambda while negative for kappa; this light chain restriction revealed by ICC aids in confirming the neoplastic nature of the fluid and involvement of patient’s underlying multiple myeloma.

Fig. 5.

Use of immunocytochemistry in differential diagnosis of hematolymphoid malignancy involving body fluid. A 77-year-old male patient had a large amount of pleural effusion composed of small/medium-sized atypical lymphoid cells with CD20 and SOX11 expression, consistent with the involvement of mantle cell lymphoma (A). Numerous atypical large plasmacytoid cells with lambda restriction on immunocytochemistry suffices for the diagnosis of myelomatous effusion (B).

Flow cytometry

Body fluid effusions are often suitable samples for flow cytometry (FC), given the samples are not fixed by alcohol or formalin. FC-based analysis is an extremely useful method when dealing with differential diagnosis of effusion-based hematolymphoid malignancy, because this technology provides a reproducible, quantitative and sensitive immunophenotyping of cells, using fluorescent- tagged antibodies targeting surface markers [5,41-44]. Similar to ICC, FC analysis using a panel of antibodies can provide diagnostic clues in lymphoid malignancies. One important consideration should be noted; since the reactive lymphocyte-rich effusions are often T-cell predominant, T-cell abundancy shown by FC does not guarantee the diagnosis of T-cell lymphoma [5,41].

Though rarer than lymphoid diseases, FC also serves important roles in leukemic conditions [41,43]. For instance, involvement of chronic lymphocytic leukemia (CLL) on body fluid can be very difficult to distinguish from reactive lymphocytosis. When there is clinical history or suspicion for CLL, FC is strongly recommended, and documentation of CD19+, CD20+ B-cell with CD5 or CD23 expression can qualify the diagnosis of CLL involvement [43].

Clonality studies

Many studies have shown the efficacy of polymerase chain reaction (PCR) for the assessment of immunoglobulin heavy chain (IgH) gene rearrangements or TCRγ gene rearrangements. Recently, clonality tests in many pathology laboratories are readily performed using BIOMED-2 assay [45,46]. Many studies have reported that detecting clonality is useful for the differential diagnosis between reactive lymphocytosis and lymphomatous fluid [47-51].

Fig. 6A shows a case where clonality testing was very helpful in the diagnosis. A 61-year-old female was diagnosed with primary central nervous system (CNS) DLBCL by stereotactic biopsy, and her CSF contained a few atypical lymphoid cells (Fig. 6A). B-cell monoclonality was found in IgH gene rearrangement study, strongly suggesting the involvement of DLBCL.

Fig. 6.

Use of molecular tests in the diagnosis of lymphocyte-rich effusion. Few atypical large cells were observed in the cerebrospinal fluid from a patient with diffuse large B-cell lymphoma (DLBCL). B-cell monoclonality was documented by polymerase chain reaction (PCR)– based clonality assay, confirming the central nervous system involvement of lymphoma (A). A 63-year-old woman with known T-prolymphocytic leukemia presented with ascitic fluid containing monoclonal T-cell proliferation, suggesting the body cavity involvement (B). A 74-yearold male patient was diagnosed with gastric DLBCL with secondary involvement into ascitic fluid. (C, left) Cytologic preparations are suitable materials for high-throughput genetic analysis, and we found IGH-MYC translocation with sufficient supporting reads mapped into chromosomes 8 and 14 (C, right).

Reactive effusions tend to be T-cell predominant, therefore, T-cell clonality test is often required to confirm involvement of T-cell LPD in body fluids [5,52]. T-cell prolymphocytic leukemia (T-PLL) can rarely involve extramedullary sites [53], and nodal involvement was diagnosed in a 63-year-old female patient (Fig. 6B). The patient developed ascites, and leukemic involvement was suspected. Cytomorphologically, some small/medium-sized lymphocytes were observed and the overall cellularity was not remarkable; however, TCRγ gene rearrangement test proved monoclonal T-cell proliferation, supporting the involvement of T-PLL of patient.

One of the practically useful tips for correct interpretation is to consider comparing the clonality testing result from cytology specimen with that from the tissue specimen. If the both results show clonal peaks/bands with approximately same size, the diagnostic power of lymphomatous effusion could be strengthened.

Clonality test could be useful for the diagnosis of CSF cytology in patients with malignant lymphoma. Review of 101 CSF samples from patients with B-cell lymphoma diagnosed in Seoul National University Hospital from 2015 to 2017 showed that monoclonality by IgH gene rearrangement study using BIOMED-2 assay was detected in 42.9% of cytomorphologically atypical/ positive CSF and as much as 18.2% of cytomorphologically negative CSF specimens (Table 4). While clonality tests are very helpful, a specific consideration should be taken when interpreting the test performed on CSF specimen. Since the overall cellularity in CSF specimen is usually very low, high sensitivity of PCR test may result in false positive pseudoclonality due to selective amplification of certain non-neoplastic clones. According to our internal review of CSF cytology from73 patients with B-cell lymphoma and active brain (leptomeningeal and/or parenchymal) disease on neuroimaging (i.e., magnetic resonance imaging), rate of positive/atypical cytology was 35.6% and B-cell monoclonality was detected in 32.9%. The combined interpretation of both cytomorphology and clonality test resulted in a higher concordance up to 50.7% with neuroimaging results. Thus, retrieval of proper clinical and radiological information should accompany the interpretation of molecular study when dealing with CSF cytology.

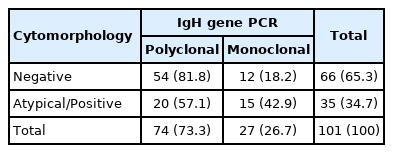

Table 4.

Comparison of CSF cytology and PCR-based clonality assay using BIOMED-2 assay for IgH gene rearrangement in patients with B-cell lymphoma

In situ hybridization

As in histopathologic diagnosis using FFPE specimens, EBV in situ hybridization can readily be performed on cytological preparations including CB [54]. Identification of EBV is extremely valuable in characterization of certain EBV-associated LPDs, for example, EBV-positive DLBCLs, extranodal NK/T-cell lymphomas or PEL.

Fluorescent in situ hybridization (FISH) is another valuable tool for documentation of genetic alterations. Feasibility of FISH on cytologic preparation is well studied in several studies on solid tumors [51,55-65]. Detection of hallmark genomic variations direct leads to final diagnosis, for example, documentation of BCL2 translocation in follicular lymphoma or MYC translocation in Burkitt lymphoma. Prognostic stratification of high-grade B-cell lymphomas can also be achieved by finding MYC or BCL2 translocation. Development of many commercially available diagnostic FISH probes would enable characterization of less common structural variations, for instance, IRF4/DUSP22 or TP63 translocations.

Mutational analysis and next-generation sequencing

Recent advances in genomic profiling technologies dramatically accelerated precision diagnosis in daily practice. Multiple techniques including direct sequencing, real-time PCR, pyrosequencing have been performed on cytologic preparations, most notably on effusion fluids from the patients with non-small cell lung cancer [65-70]. Clinically meaningful disease-specific genetic alterations have been uncovered in the majority of lymphoma entities [71]. For instance, detection of MYD88 L265P mutation using allele-specific PCR assay has been proven its efficacy on differentiating lymphoplasmacytic lymphomas [72,73] from other types of low-grade B-cell lymphomas. Recently, genetic classification of DLBCL has been recently introduced, and unique genomic landscape of certain DLBCL entities has been identified. For example, primary CNS lymphoma (PCNSL) and primary vitreoretinal lymphoma are characterized by frequent mutations in MYD88 and CD79B. Thus, clonality test and/or MYD88 mutation analysis would be helpful to determine the CSF involvement of PCNSL in equivocal cases based on cytomorphology only. In a similar vein, clonality test and/or MYD88 mutation analysis would be informative in the diagnosis of vitreoretinal lymphoma using cytology specimen (e.g., vitreoretinal fluid) [74-76].

Single gene assays are being gradually replaced by next-generation sequencing (NGS), which enables testing for multiple genetic alterations on a single platform. Accumulating evidences suggest that various types of cytological preparations—smears, cytospins, liquid-based preparations and CBs—can be used for NGS-based assays with equivalent performance [77,78]. Some recommend that a portion of cytology specimens be reserved before CB preparation, for formalin fixation during the process my cause DNA cross-linkage and fragmentation [79-81].

Clinical utility of NGS-based assay on LPDs has been suggested by recent studies, both in diagnostic and prognostic perspectives [82-85]. One example is a report of angioimmunoblastic T-cell lymphoma [86], of which the primary diagnosis was made on pleural effusion fluid by detecting pathognomic RHOA G17V mutation by targeted NGS as well as immunophenotyping on CB. Fig. 6C shows another example that NGS-based assay helped in the genomic characterization and prognostic stratification of a patient with lymphoma. A 74-year-old male was diagnosed with gastric DLBCL of non-germinal center B-cell immunophenotype, and the patient developed ascites during the course. Targeted NGS using customized panel encompassing 121 lymphoma- related genes was performed, which revealed IGH-MYC translocation. In addition, TET2 truncating mutations and heterozygous deletions of CDKN2A and CDKN2B were also found.

In some instances, cytologic specimens may be the only available resource for diagnosis and genomic profiling, therefore, the importance of cytologic preparation in NGS-based practice would be further expanded [81,87].
