Frequent apocrine changes in pleomorphic adenoma with malignant transformation: a possible pre-malignant step in ductal carcinoma ex pleomorphic adenoma
Article information
Abstract
Background
The most common type of carcinoma ex pleomorphic adenoma (CPA) is histologically equivalent to salivary duct carcinoma, which has an apocrine phenotype. Invasive CPA is often accompanied by non-invasive or in situ carcinoma, an observation that suggests the presence of precursor lesions. The aim of this study was to identify candidate precursor lesions of CPA within pleomorphic adenoma (PA).
Methods
Eleven resected cases of CPA with residual PA and 17 cases of PA with atypical changes were subjected to immunohistochemistry (IHC) for p53, human epidermal growth factor receptor 2 (HER2), androgen receptor (AR), pleomorphic adenoma gene 1, gross cystic disease fluid protein-15 (GCDFP-15), and anti-mitochondrial antibody.
Results
Invasive or in situ carcinoma cells in all CPAs were positive for AR, GCDFP-15, and HER2. Atypical foci in PAs corresponded to either apocrine or oncocytic changes on the basis of their reactivity to AR, GCDFP-15, and anti-mitochondrial antibody. Atypical cells in PAs surrounding CPAs had an apocrine phenotype without HER2 expression.
Conclusions
Our study identified frequent apocrine changes in residual PAs in CPA cases, suggesting a possible precursor role of apocrine changes. We recommend the use of HER2 IHC in atypical PAs, and that clinicians take HER2 positivity into serious consideration.
Carcinoma ex pleomorphic adenoma (CPA) is defined as carcinoma derived from pleomorphic adenoma (PA). Virtually all types of salivary gland carcinomas can occur within PAs, and can be classified as luminal, abluminal, or mixed type [1]. The most common form of CPA is high-grade carcinoma of a luminal type, which is histologically equivalent to salivary duct carcinoma (SDC). A significant proportion of SDCs are believed to arise in Pas [2]. These CPAs are thought to result from the accumulation of genetic instabilities in the luminal epithelial cells of either a long-standing primary or a recurrent PA. The existence of early CPA has been recognized and reported using a range of terms including ‘precancerous foci,’ ‘non-invasive (intracapsular) carcinoma,’ ‘intraductal carcinoma,’ ‘intracapsular (in situ) carcinoma,’ and ‘intraductal precursor’ [3-8]. Since the exact meaning of these terms varies slightly, confusion can arise. In this paper, we restrict the term “in situ” to intratubular or intraductal carcinoma surrounded by benign myoepithelial cells, and do not apply it to CPA without extracapsular invasion.
The expression of androgen receptor (AR) and gross cystic disease fluid-15 (GCDFP-15) in SDCs was first reported in 1998 [9], and the apocrine nature of SDC has recently been described [10]. CPA frequently shows expression of AR [11,12], indicating that it shares the apocrine nature of SDC. Expression of AR has also been reported in a small number of studies on PA [12,13]. We attempted to identify the apocrine phenotype in atypical PA and residual PA in cases of CPA.
MATERIALS AND METHODS
Case selection
Five resected cases of CPAs with both invasive and in situ carcinoma (CisPA) and residual PA and six cases of CisPA only with residual PA were selected from among 32 luminal-type CPA specimens collected at the Asan Medical Center, Seoul, Korea, between 2006 and 2017. Twenty-one cases without in situ carcinoma or residual PA, and 20 abluminal-type CPAs from the same period were excluded from the study. CisPAs were defined by the presence of areas of intratubular growth of markedly atypical cells, with expansion and distortion of surrounding myoepithelial frames. Seventeen resected cases of PA with atypical changes were selected from the same period at random. The presence of cellular enlargement with nuclear pleomorphism, hyperchromasia, and prominent nucleoli, without structural abnormality, was regarded as atypical change in PA.
Immunohistochemistry
Representative areas from 28 cases were subjected to immunohistochemistry for p53 (1:1,500, clone DO-7, DAKO, Glostrup, Denmark), human epidermal growth factor receptor 2 (HER2; 1:8, clone 4B5, Ventana Medical Systems, Tucson, AZ, USA), AR (1:100, clone SP107, Cell Marque, Rocklin, CA, USA), pleomorphic adenoma gene 1 (PLAG1; 1:50, clone 3B7, Novus, Centennial, CO, USA), GCDFP-15 (1:50, clone 23A3, Neomarkers, Fremont, CA, USA), and anti-mitochondrial antibody (AM; 1:2,000, clone 113-1, Abcam, Cambridge, UK). Staining was carried out using the Benchmark XT automated immunohistochemistry system (Ventana Medical Systems). Expression in carcinoma cells and atypical cells was evaluated as follows: nuclear staining in ≥ 10% of cells was defined as positive for p53, AR, and PLAG1. The positivity of p53 was scored as +1 when 10% to one-third of cells were positive; +2 when one-third to one-half of cells were positive; or +3 when, more than two-thirds of cells were positive [14]. HER2 was evaluated using the American Society of Clinical Oncology 2018 system [15] as follows: negative, score 0 (no staining or incomplete staining in ≤ 10% of tumor cells) or score 1 (incomplete staining in > 10% of tumor cells); equivocal, score 2 (weak/moderate complete staining in > 10% of tumor cells); positive, score 3 (intense complete staining in > 10% of tumor cells). Cytoplasmic staining for GCDFP-15 and AM was graded from 0 to +3 according to the presence and intensity of the stain.
RESULTS
Patient characteristics
CPA specimens came from eight male and three female patients aged 35 to 78 years (mean, 57). Eight cases were located in the parotid gland and three cases occurred in the submandibular gland. The mean tumor size was 2.6 cm (range, 1.5 to 4.3 cm). The mean time between symptom presentation and diagnosis was 123 months. Six patients received postoperative adjuvant radiotherapy. No patient developed recurrence or metastasis during the mean follow-up period of 66 months (range, 15 to 104 months). The 17 patients with PA included seven males and 10 females aged 29 to 73 years. The parotid gland was the most common site. These data are presented in Tables 1 and 2.

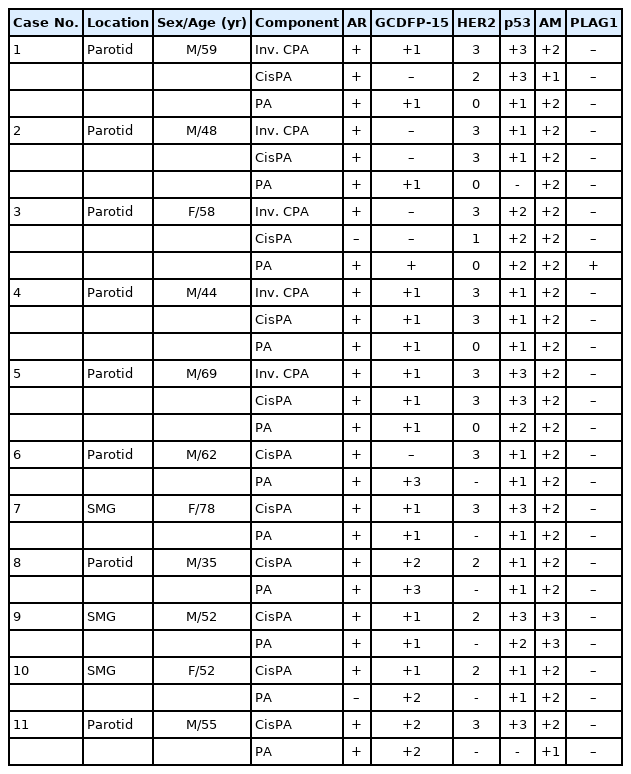

Basic information and immunoprofiles of carcinoma ex pleomorphic adenomas
Basic information and immunoprofiles of atypical pleomorphic adenomas
Immunoprofiles
The immunohistochemical results are summarized in Tables 1 and 2. Invasive or in situ carcinoma cells in all 11 CPAs were positive for AR and GCDFP-15, manifesting an apocrine nature. They were also positive for HER2, p53, and anti-mitochondrial antibody, and negative for PLAG1. The residual PA parts of CPA cases contained areas of apocrine phenotype and morphology including dense plump eosinophilic cytoplasm with snouts. HER2 expression was negligible in these components. The expression of p53 in the residual PAs was variable. Reaction to anti-mitochondrial antibody was strong in all cases, and PLAG1 was positive in one residual PA (Fig. 1).
Immunohistochemical results for carcinoma ex pleomorphic adenoma (left column), carcinoma in situ ex pleomorphic adenoma (middle column), and apocrine changes in residual pleomorphic adenoma (right column). All elements are positive for androgen receptor (AR), gross cystic disease fluid protein-15 (GCDFP-15), and anti-mitochondrial antibody (AM). The intensity of human epidermal growth factor receptor 2 (HER2) and p53 staining varies. Pleomorphic adenoma gene 1 (PLAG1) is negative in all cases.
Atypical cells in PA cases could be divided into either apocrine or oncocytic changes on the basis of reactivity to AR, GCDFP-15, and anti-mitochondrial antibody. Nine cases were positive for all, corresponding to apocrine changes, and eight cases were negative for AR or GCDFP-15 and strongly positive for anti-mitochondrial antibody, representing oncocytic changes. In the former group, the HER2 score was 1 or 0, while all cases in the latter group had a score of 0. All specimens with apocrine or oncocytic changes showed positive reactions to anti-mitochondrial antibody. There were variable positive reactions to p53 across the cases. In most specimens with oncocytic changes and in two apocrine cases, PLAG1 was expressed. These two types of metaplasia were sometimes difficult to distinguish by histology alone (Fig. 2). Interestingly, the acini of the submandibular glands stained diffusely positive for GCDFP-15, while the acini of the parotid gland did not, suggesting different constituents between the two glands.
Atypical changes in pleomorphic adenoma can be divided into the apocrine type (left column) and oncocytic type (right column) according to the immunohistochemistry results for androgen receptor (AR) and gross cystic disease fluid protein-15 (GCDFP-15). Both types are positive for antimitochondrial antibody (AM). Faint focal staining for human epidermal growth factor receptor 2 (HER2) can be seen in five apocrine cases and one oncocytic type. In all cases, p53 is positive. Pleomorphic adenoma gene 1 (PLAG1) is expressed in most oncocytic cases, but rarely expressed in the apocrine type.
DISCUSSION
The most common type of CPA is high-grade carcinoma, which is histologically equivalent to SDC. Several genetic studies into PLAG1 or HMGA2 abnormalities in SDCs have suggested that a large proportion of SDCs arise in PAs regardless of the presence or absence of residual PA [2,16,17]. SDCs affect men more than women, and most of them show an apocrine phenotype with expression of AR [10]. We investigated whether there was an apocrine phenotype in the residual PA of CPAs and random PAs.
Our study confirmed that carcinoma cells of luminal-type CPA or CisPA were apocrine in nature, and there were apocrine changes in the residual PA components of these cases. These results suggested that apocrine changes might precede the development of CPA, although the pre-neoplastic potential of apocrine changes cannot be determined at present. In the female breast, apocrine carcinoma is rare, while benign apocrine changes are common [18]. The neoplastic potential of apocrine changes in the breast remains controversial. Jones et al. [19] conducted comparative genomic hybridization on apocrine hyperplasia, apocrine carcinoma in situ, and invasive apocrine carcinoma, and suggested that apocrine hyperplasia is a non-obligate precursor of apocrine carcinoma. Other authors, however, have described the difficulty of distinguishing atypical apocrine lesions from low-grade apocrine carcinoma in situ, and the biological significance of atypical apocrine lesions in the breast is unclear [20].
Apocrine changes or metaplasias are much rarer in the salivary gland than in the breast. Apocrine metaplasia in non-neoplastic salivary gland lesions has almost never been described. We found that the acini of the submandibular gland were diffusely positive for GCDFP-15, but they did not express AR. We found a similar report with respect to GCDFP-15 expression in the submandibular gland [21], and we hypothesize that there are differences in composition between the serous acini of the submandibular and parotid glands. Apocrine metaplasia is also a rare phenomenon in neoplasms of the salivary gland. Sclerosing polycystic adenosis (SPA), an uncommon proliferative lesion of the salivary gland, usually has an apocrine component, and 25.8% of these lesions develop ductal carcinoma, as reported in a review by Espinosa et al. [22] These authors described two new cases of intraductal epithelial proliferation with apocrine-like differentiation. For these reasons, many pathologists have considered SPA to be a tumorous lesion [23], and SPA is expected to be listed in the 5th edition of the WHO Classification of Head and Neck Tumors as ‘sclerosing polycystic adenoma’ [24]. A case of SPA with ductal carcinoma in situ and expression of GCDFP-15 and AR has also been reported, suggesting a pathogenesis similar to that of CPA [25].
In PAs, apocrine metaplasia has rarely been described, while oncocytic, sebaceous, squamous, and mucinous metaplasia are relatively well recognized [26,27]. Nakajima et al. [12] reported that AR expression was observed in seven of 23 PA cases, but the relationship between AR expression and histology was not described. We could identify areas of apocrine changes in both residual PAs of CPAs and random PAs. The lesions often showed cystic changes and cytoplasmic snouts, but were sometimes histologically indistinguishable from oncocytic changes. Both changes are accompanied by cellular enlargement, rich eosinophilic cytoplasm, and large hyperchromatic nuclei with prominent nucleoli, with pathologists wavering between diagnoses of benign atypia and carcinoma in situ. Not only oncocytic but also apocrine-type cells stained strongly with anti-mitochondrial antibody, reflecting the abundance of intracytoplasmic mitochondria in both populations. The relevance of oncocytic changes in PA was not well established until Di Palma et al. [26] analyzed a case of PA with oncocytic changes using immunohistochemistry and microarray-based chromogenic in situ hybridization, and concluded that bizarre atypical cells are not malignant. They also decided, based on their expression of cytokeratin 8/18 and negativity for p63, that these cells were oncocytic epithelial cells. In contrast, non-apocrine oncocytic cells of the PAs in our series were all positive for PLAG1, suggesting that they had a myoepithelial nature.
Many pathologists have sought to identify early malignant changes in PAs using immunohistochemistry (IHC), including p53, HER2, and AR [3,4,6]. DeRoche et al. [13] reported that three of 41 PAs exhibited multifocal staining for HER2 and AR, but that the stained ductal epithelium showed no cytological atypia. They concluded that these markers could not be used to reliably predict early carcinomatous transformation. The significance of these lesions remains unclear. Meanwhile, an HER2 positivity score of 3 correlated well with marked cellular and structural atypia in our series, and no cases of PA with apocrine or oncocytic atypia expressed HER2. This finding is consistent with those of previous studies by Di Palma et al. [4] and Logasundaram et al. [8]. It is noteworthy that all three of these studies, including ours, the HER2 expression rate in CPA was high, while the documented HER2 immunopositivity or amplification rate in de novo SDC is approximately 30% [28,29], suggesting pathogenetic differences. We recommend the use of HER2 IHC in atypical PAs, and that clinicians take HER2 positivity into serious consideration.
We could not find any characteristic patterns of p53 overexpression in this series between PA and CPA, in contrast to a previous report on p53 positivity in focal carcinoma and atypical tumor cells in PA [3]. Other studies revealed that TP53 mutations were accompanied by malignant transformation of PA [5,30], but protein expression was ubiquitous in both PAs and CPAs in our study. Expression of p53 alone did not indicate carcinomatous transformation.
In summary, we observed a similar apocrine phenotype in malignant and benign components of CPA, suggesting their relationship and a possible role of apocrine changes as a precursor to the development of carcinoma. Recognizing apocrine changes in PAs appears to be worth further investigation to facilitate the care of patients with PAs.
Notes
Ethics Statement
The study was approved by the institutional review board of Asan Medical Center (2021-1196), and the need for written informed consent was waived.
Availability of Data and Material
The datasets generated or analyzed during the study are available from the corresponding author on reasonable request.
Code Availability
Not applicable.
Author Contributions
Conceptualization: KJC. Data curation: KJC, JSS. Formal analysis: JSS, YK. Funding acquisition: KJC. Investigation: JSS. Methodology: KJC. Project administration: JSS. Resources: YSL, SHC, SYN, SYK. Supervision: KJC. Validation: KJC, JSS. Visualization: JSS. Writing—original draft: KJC, JSS. Writing— review & editing: KJC, JSS. Approval of final manuscript: all authors.
Conflicts of Interest
J.S.S., a contributing editor of the Journal of Pathology and Translational Medicine, was not involved in the editorial evaluation or decision to publish this article. All remaining authors have declared no conflicts of interest.
Funding Statement
No funding to declare.
