Review
 The Use of Fine-Needle Aspiration (FNA) Cytology in Patients with Thyroid Nodules in Asia: A Brief Overview of Studies from the Working Group of Asian Thyroid FNA Cytology
Chan Kwon Jung,, SoonWon Hong1, Andrey Bychkov2, Kennichi Kakudo3
Journal of Pathology and Translational Medicine 2017;51(6):571-578.
DOI: https://doi.org/10.4132/jptm.2017.10.19
Published online: October 27, 2017

Department of Hospital Pathology, Seoul St. Mary’s Hospital, College of Medicine, The Catholic University of Korea, Seoul, Korea

1Department of Pathology, Gangnam Severance Hospital, Yonsei University College of Medicine, Seoul, Korea

2Department of Pathology, Faculty of Medicine, Chulalongkorn University, Bangkok, Thailand

3Department of Pathology, Nara Hospital, Kindai University Faculty of Medicine, Nara, Japan

Corresponding Author Chan Kwon Jung, MD Department of Hospital Pathology, Seoul St. Mary’s Hospital, College of Medicine, The Catholic University of Korea, 222 Banpo-daero, Seocho-gu, Seoul 06591, Korea Tel: +82-2-2258-1622 Fax: +82-2-2258-1627 E-mail: ckjung@catholic.ac.kr
• Received: October 12, 2017   • Accepted: October 16, 2017

© 2017 The Korean Society of Pathologists/The Korean Society for Cytopathology

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/4.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

prev next
  • 11,180 Views
  • 189 Download
  • 18 Web of Science
  • 20 Crossref
  • 21 Scopus
Full Article

Download PDF Download PDF

  • Ultrasound-guided fine-needle aspiration (FNA) cytology is the most widely used screening and diagnostic method for thyroid nodules. Although Western guidelines for managing thyroid nodules and the Bethesda System for Reporting Thyroid Cytopathology are widely available throughout Asia, the clinical practices in Asia vary from those of Western countries. Accordingly, the Working Group of Asian Thyroid FNA Cytology encouraged group members to publish their works jointly with the same topic. The articles in this special issue focused on the history of thyroid FNA, FNA performers and interpreters, training programs of cytopathologists and cytotechnicians, staining methods, the reporting system of thyroid FNA, quality assurance programs, ancillary testing, and literature review of their own country’s products. Herein, we provide a brief overview of thyroid FNA practices in China, India, Japan, Korea, the Philippines, Taiwan, and Thailand.
  • Keywords: Thyroid; Cytology; Fine-needle aspiration; Asia; History; Methods; Survey
Fine-needle aspiration (FNA) cytology has been widely accepted as a safe, cost-effective, and accurate tool for the preoperative diagnosis of thyroid nodules. In the past, aspirations were performed only with the manual aid. Since FNA under ultrasound guidance proved to be more accurate for the detection of thyroid cancer, FNA should be performed under ultrasound guidance using a 23-, 25-, or 27-gauge needle for cytological evaluation [1,2]. The wide use of FNA cytology for thyroid nodules has significantly decreased the rate of unnecessary surgery for benign thyroid nodules over the last three decades [1,3].
Although North American and European guidelines for managing thyroid nodules and the Bethesda System for Reporting Thyroid Cytopathology (TBSRTC) are available throughout Asia, the clinical practices in Asia vary from those of Western countries in terms of disease incidence, diagnostic methods, availability of diagnostic tests, conservative management approach, national health insurance system, and governmental regulations on health care. Moreover, there is considerable variation among Asian countries due to the different rates of economic development and kinds of healthcare systems. Asian countries have increasingly reported their experiences of FNA of thyroid nodules using TBSRTC. Despite these efforts, Asian data on thyroid FNA have not been very well-organized so far. Accordingly, the Working Group of Asian Thyroid FNA Cytology established in 2016 has encouraged group members to publish their work jointly [4].
In this special issue, seven articles from China, India, Japan, Korea, the Philippines, Taiwan, and Thailand jointly focused on the same topic regarding the history of thyroid FNA, FNA performers and interpreters, the training programs of cytopathologists and cytotechnicians, staining methods, the reporting system of thyroid FNA, quality assurance programs, and ancillary testing, added by the comprehensive review of publications released from the individual countries [5-11]. Herein, we provide a brief overview of contemporary thyroid FNA practices based on the review articles from seven Asian countries.
In the late 1920s, Hayes Martin and Edward Ellis performed aspiration biopsies using an 18-gauge needle for the cytological evaluation of thyroid lesions in the Memorial Hospital of New York [12]. In 1952, thyroid aspiration cytology using a fine needle (diameter of 0.4–0.8 mm) was introduced by Nils Söderström in Sweden [13]. Thyroid FNA was used in routine practice as an accurate test for distinguishing between benign and malignant thyroid nodules in Sweden since the 1950s. In the United States, FNA was not successfully used for the diagnosis of thyroid nodules before 1970s because of the clinician’s preference for surgical biopsies, a lack of familiarity with the FNA procedure, and concerns about tumor seeding along the needle tract [14,15]. After that time, thyroid FNA was reintroduced in the United States and became widely available in the 1980s [14].
In Asia, thyroid FNA was introduced in China and Japan in the 1950s [9,10]. In Korea, India, and Taiwan, thyroid FNA was introduced in the 1970s [5-7,11]. Table 1 summarizes the brief history of thyroid FNA in seven Asian countries [5-11].
Since thyroid FNA was initially introduced by clinicians in most countries, interpretation of FNA cytology were mostly done by clinicians in the past, including endocrinologists, surgeons, and radiologists. In recent years, thyroid FNA has been performed under ultrasound guidance by clinicians in Japan, Korea, the Philippines, Taiwan, and Thailand. Chinese clinicians prefer an intraoperative frozen section rather than FNA for the diagnosis of thyroid nodules [9]. Thyroid FNA is more frequently performed through palpation rather than ultrasound in India, Thailand, and the Philippines because of limited or delayed access to sonography [5,8,11]. Table 2 summarizes the current practices of thyroid FNA performers and interpreters in seven Asian countries [5-11].
The most widely used staining method for thyroid FNA specimens was Papanicolaou stain. Hematoxylin and eosin stain was favored by most Chinese pathologists [9]. In India and Thailand, thyroid FNA samples were stained with a combination of two classical stains: alcohol-fixed smears were stained with Papanicolaou stain and air-dried smears were stained with modified Giemsa stain (e.g., May-Grünwald-Giemsa stain or Diff-Quik stain) [5,8]. Table 3 summarizes the staining methods for thyroid FNA cytology specimens [5-11].
The reporting system of thyroid FNA cytology has improved significantly over the past 10 years with the introduction of TBSRTC [1,3]. TBSRTC consists of six diagnostic categories in order to facilitate communication among cytopathologists and their clinical colleagues and to provide the risk of malignancy for each diagnostic category [3]. After the introduction of TBSRTC, the system has been most widely accepted in China, India, Korea, the Philippines, and Thailand [5,6,8,9]. Other reporting systems for thyroid FNA cytology used in Asia were the General Rules for the Description of Thyroid Cancer by the Japanese Society of Thyroid Surgery, the Japanese System for Thyroid FNA Cytology by the Japan Thyroid Association, and the 6-tier System of Taiwan [7,10]. Table 4 summarized the reporting system of thyroid FNA cytology before and after the introduction of TBSRTC [5-11].
Although ultrasound-guided thyroid FNA has high sensitivity and specificity in distinguishing benign from malignant thyroid nodules, in 1%–40% of cases, thyroid FNA is insufficient for diagnosis and is categorized as non-diagnostic according to TBSRTC [16]. The non-diagnostic FNA cytology by TBSRTC includes virtually acellular specimens (requiring the presence of at least six groups of well-visualized follicular cells with each group containing at least 10 well-preserved epithelial cells), cystic fluid only, and other specimens (obscuring blood, crushed artifacts, poor clotting artifacts, air drying artifacts, overly thick smears, etc.) [3]. In the Japanese system, thyroid FNA with “cystic fluid only” is classified as benign rather than non-diagnostic [10,17]. In Taiwan, a paucicellular specimen with fewer than six groups of ten benign follicular cells is considered benign if it contains more than 50 follicular cells in total or consists of degenerative hemorrhagic cyst fluid and scant benign follicular cells [7].
Table 5 summarizes the criteria and rate of non-diagnostic thyroid FNA [5-11]. A high rate of non-diagnostic aspirates was reported from several teaching hospitals in the Philippines and Thailand, which was linked to the training activity of unskilled residents and limited access to ultrasound guidance [8,11].
In Korea, the use of liquid-based cytology in thyroid FNA was adopted in 2008 and became widely used since 2010 [6,18]. In Taiwan, liquid-based cytology in thyroid FNA was first introduced in 2014 and then became commonly used [7]. However, liquid-based cytology has not been made widely available for thyroid FNA in other countries [5,8-11].
Core needle biopsy as an alternative to thyroid FNA has been used mainly in Korea whereas in other countries, this biopsy is performed only in a few institutions [5-10].
Immunocytochemistry generally has limited applications for the diagnosis of thyroid FNA in Asian countries. Although molecular testing has been useful for the diagnosis of indeterminate thyroid FNA, it is often not practical for most clinical laboratories and is generally not covered by health insurance in Asia [5-11].
Table 6 summarizes the ancillary tests in thyroid FNA cytology [5-11].
Asian pathologists receive a certification in pathology and cytopathology after completing residency training and passing board examinations, and usually practice both surgical pathology and cytopathology. Training programs for cytotechnicians have been well organized in Japan, Korea, and Taiwan. Certified cytotechnicians screen thyroid FNA cytology, but are not eligible to declare a final diagnosis without supervision by a pathologist. Table 7 summarizes the training programs for cytopathologists and cytotechnicians [5-11].
Quality control in cytology includes all activities to improve the performance of the test from the time of specimen collection until the cytology report is completed. Quality assurance defined by the College of American Pathologists includes quality review activities and systematic monitoring of quality control results to provide confidence that all quality control systems are functioning properly and quality requirements are fulfilled [19]. Quality control materials in thyroid FNA should include the distribution of each diagnostic category, histologic outcomes of FNA diagnostic categories, rate of surgical follow-up, and risk of malignancy calculated using the total number of each diagnostic category with and without surgical follow-up.
Quality improvement programs in Asian countries are organized by local societies of cytology and/or pathology. Table 8 summarizes the quality assurance and quality control programs in thyroid FNA cytology [5-11].
The purpose of the recently established Working Group of Asian Thyroid FNA Cytology is to promote communication and share practices among pathologists, cytopathologists, and clinicians dealing with thyroid FNA in Asia. In this special issue, we presented for the first time a single volume collection of contemporary reviews on Asian practices of thyroid FNA. Despite most countries adopting Western systems and guidelines and incorporated them into their national systems early, there remains local variation which should be considered when doing comparisons between Asian and Western countries, and among Asian countries. We hope that these reports from Asia will encourage further studies on thyroid FNA cytology to improve the diagnosis of thyroid nodules and subsequently provide optimal care for patients with thyroid nodules in Asia.
We would like to acknowledge all the members of the Working Group of Asian Thyroid FNA Cytology. This work was supported by a grant (HI16C2013) from the Korean Health Technology R&D Project, Ministry of Health & Welfare, Republic of Korea.

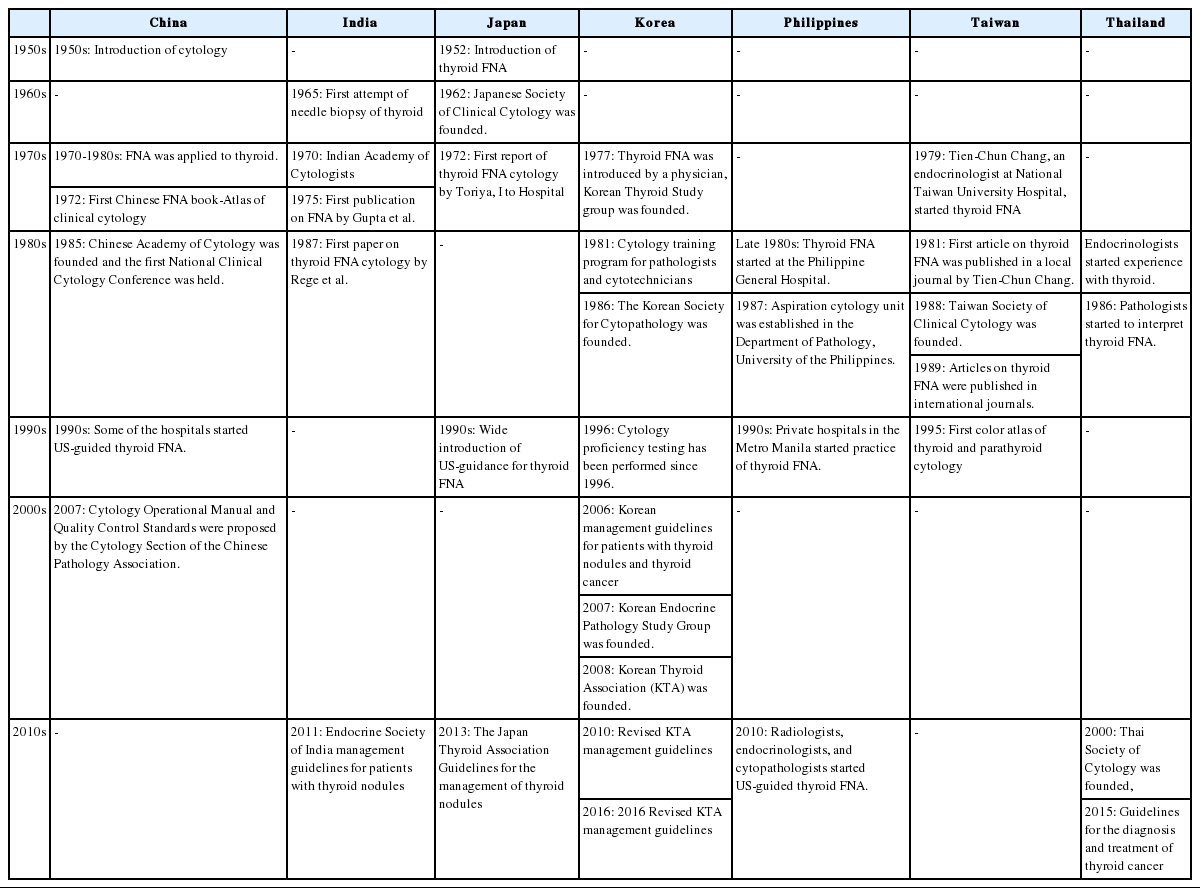

Table 1.
A brief overview of the history of thyroid FNA cytology in Asian countries
China India Japan Korea Philippines Taiwan Thailand
1950s 1950s: Introduction of cytology - 1952: Introduction of thyroid FNA - - - -
1960s - 1965: First attempt of needle biopsy of thyroid 1962: Japanese Society of Clinical Cytology was founded. - - - -
1970s 1970-1980s: FNA was applied to thyroid. 1970: Indian Academy of Cytologists 1972: First report of thyroid FNA cytology by Toriya, I to Hospital 1977: Thyroid FNA was introduced by a physician, Korean Thyroid Study group was founded. - 1979: Tien-Chun Chang, an endocrinologist at National Taiwan University Hospital, started thyroid FNA -
1972: First Chinese FNA book-Atlas of clinical cytology 1975: First publication on FNA by Gupta et al.
1980s 1985: Chinese Academy of Cytology was founded and the first National Clinical Cytology Conference was held. 1987: First paper on thyroid FNA cytology by Rege et al. - 1981: Cytology training program for pathologists and cytotechnicians Late 1980s: Thyroid FNA started at the Philippine General Hospital. 1981: First article on thyroid FNA was published in a local journal by Tien-Chun Chang. Endocrinologists started experience with thyroid.
1986: The Korean Society for Cytopathology was founded. 1987: Aspiration cytology unit was established in the Department of Pathology, University of the Philippines. 1988: Taiwan Society of Clinical Cytology was founded. 1986: Pathologists started to interpret thyroid FNA.
1989: Articles on thyroid FNA were published in international journals.
1990s 1990s: Some of the hospitals started US-guided thyroid FNA. - 1990s: Wide introduction of US-guidance for thyroid FNA 1996: Cytology proficiency testing has been performed since 1996. 1990s: Private hospitals in the Metro Manila started practice of thyroid FNA. 1995: First color atlas of thyroid and parathyroid cytology -
2000s 2007: Cytology Operational Manual and Quality Control Standards were proposed by the Cytology Section of the Chinese Pathology Association. - - 2006: Korean management guidelines for patients with thyroid nodules and thyroid cancer - - -
2007: Korean Endocrine Pathology Study Group was founded.
2008: Korean Thyroid Association (KTA) was founded.
2010s - 2011: Endocrine Society of India management guidelines for patients with thyroid nodules 2013: The Japan Thyroid Association Guidelines for the management of thyroid nodules 2010: Revised KTA management guidelines 2010: Radiologists, endocrinologists, and cytopathologists started US-guided thyroid FNA. - 2000: Thai Society of Cytology was founded,
2016: 2016 Revised KTA management guidelines 2015: Guidelines for the diagnosis and treatment of thyroid cancer

FNA, fine-needle aspiration; US, ultrasound.

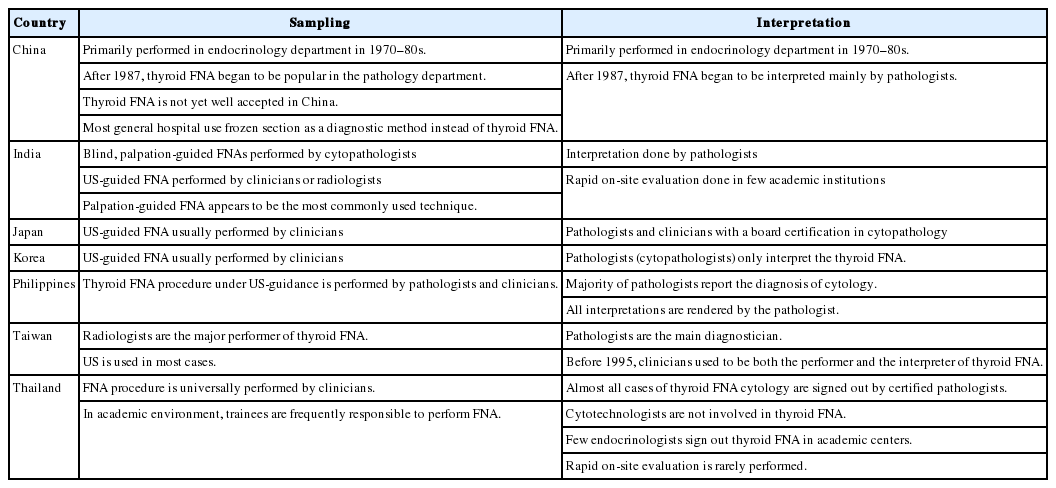

Table 2.
Thyroid FNA performer and interpreter
Country Sampling Interpretation
China Primarily performed in endocrinology department in 1970–80s. Primarily performed in endocrinology department in 1970–80s.
After 1987, thyroid FNA began to be popular in the pathology department. After 1987, thyroid FNA began to be interpreted mainly by pathologists.
Thyroid FNA is not yet well accepted in China.
Most general hospital use frozen section as a diagnostic method instead of thyroid FNA.
India Blind, palpation-guided FNAs performed by cytopathologists Interpretation done by pathologists
US-guided FNA performed by clinicians or radiologists Rapid on-site evaluation done in few academic institutions
Palpation-guided FNA appears to be the most commonly used technique.
Japan US-guided FNA usually performed by clinicians Pathologists and clinicians with a board certification in cytopathology
Korea US-guided FNA usually performed by clinicians Pathologists (cytopathologists) only interpret the thyroid FNA.
Philippines Thyroid FNA procedure under US-guidance is performed by pathologists and clinicians. Majority of pathologists report the diagnosis of cytology.
All interpretations are rendered by the pathologist.
Taiwan Radiologists are the major performer of thyroid FNA. Pathologists are the main diagnostician.
US is used in most cases. Before 1995, clinicians used to be both the performer and the interpreter of thyroid FNA.
Thailand FNA procedure is universally performed by clinicians. Almost all cases of thyroid FNA cytology are signed out by certified pathologists.
In academic environment, trainees are frequently responsible to perform FNA. Cytotechnologists are not involved in thyroid FNA.
Few endocrinologists sign out thyroid FNA in academic centers.
Rapid on-site evaluation is rarely performed.

FNA, fine-needle aspiration; US, ultrasound.

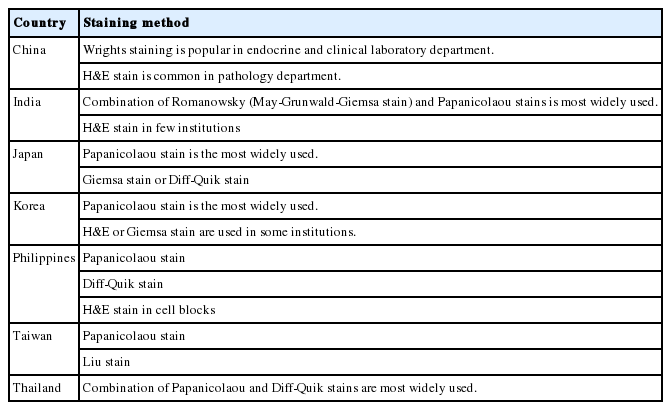

Table 3.
Staining methods for thyroid fine-needle aspiration cytology specimens
Country Staining method
China Wrights staining is popular in endocrine and clinical laboratory department.
H&E stain is common in pathology department.
India Combination of Romanowsky (May-Grunwald-Giemsa stain) and Papanicolaou stains is most widely used.
H&E stain in few institutions
Japan Papanicolaou stain is the most widely used.
Giemsa stain or Diff-Quik stain
Korea Papanicolaou stain is the most widely used.
H&E or Giemsa stain are used in some institutions.
Philippines Papanicolaou stain
Diff-Quik stain
H&E stain in cell blocks
Taiwan Papanicolaou stain
Liu stain
Thailand Combination of Papanicolaou and Diff-Quik stains are most widely used.

H&E, hematoxylin and eosin.

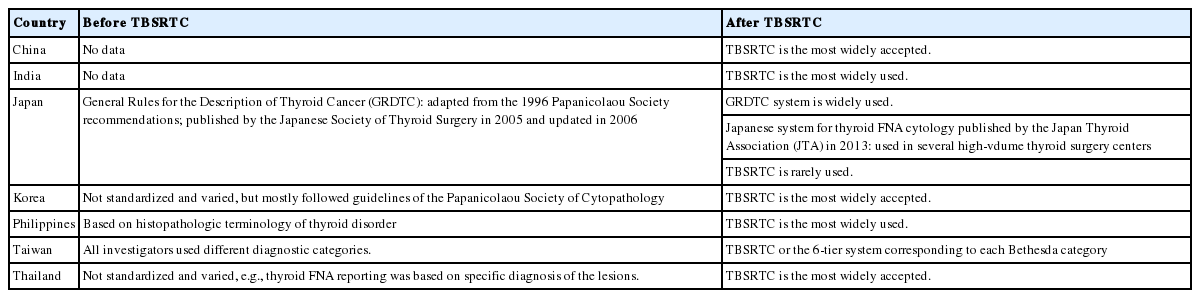

Table 4.
Reporting system of thyroid FNA cytology
Country Before TBSRTC After TBSRTC
China No data TBSRTC is the most widely accepted.
India No data TBSRTC is the most widely used.
Japan General Rules for the Description of Thyroid Cancer (GRDTC): adapted from the 1996 Papanicolaou Society recommendations; published by the Japanese Society of Thyroid Surgery in 2005 and updated in 2006 GRDTC system is widely used.
Japanese system for thyroid FNA cytology published by the Japan Thyroid Association (JTA) in 2013: used in several high-vdume thyroid surgery centers
TBSRTC is rarely used.
Korea Not standardized and varied, but mostly followed guidelines of the Papanicolaou Society of Cytopathology TBSRTC is the most widely accepted.
Philippines Based on histopathologic terminology of thyroid disorder TBSRTC is the most widely used.
Taiwan All investigators used different diagnostic categories. TBSRTC or the 6-tier system corresponding to each Bethesda category
Thailand Not standardized and varied, e.g., thyroid FNA reporting was based on specific diagnosis of the lesions. TBSRTC is the most widely accepted.

FNA, fine-needle aspiration; TBSRTC, The Bethesda System for Reporting Thyroid Cytopathology.

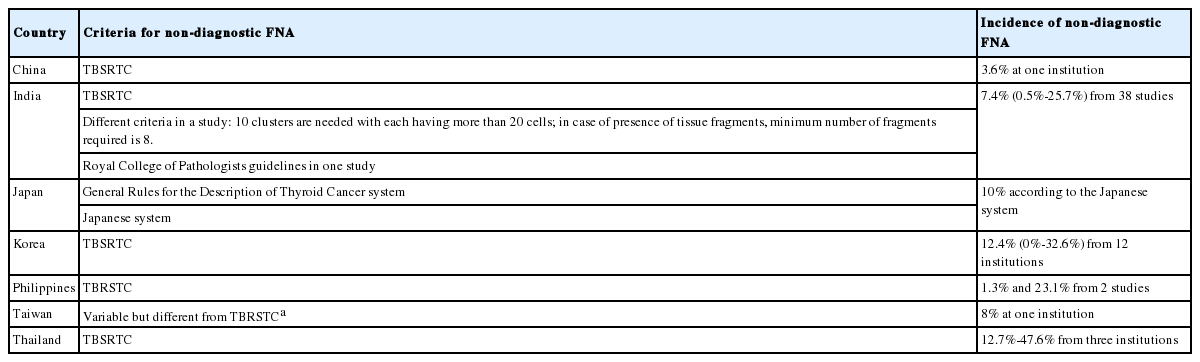

Table 5.
Non-diagnostic thyroid FNA
Country Criteria for non-diagnostic FNA Incidence of non-diagnostic FNA
China TBSRTC 3.6% at one institution
India TBSRTC 7.4% (0.5%-25.7%) from 38 studies
Different criteria in a study: 10 clusters are needed with each having more than 20 cells; in case of presence of tissue fragments, minimum number of fragments required is 8.
Royal College of Pathologists guidelines in one study
Japan General Rules for the Description of Thyroid Cancer system 10% according to the Japanese system
Japanese system
Korea TBSRTC 12.4% (0%-32.6%) from 12 institutions
Philippines TBRSTC 1.3% and 23.1% from 2 studies
Taiwan Variable but different from TBRSTCa 8% at one institution
Thailand TBSRTC 12.7%-47.6% from three institutions

FNA, fine-needle aspiration; TBSRTC, the Bethesda System for Reporting Thyroid Cytopathology.

aMost Taiwan pathologists consider that the specimen is negative, but not non-diagnostic when there are less than six groups but more than 50 follicular cells in total or a degenerative hemorrhagic cyst with scant benign follicular cells.

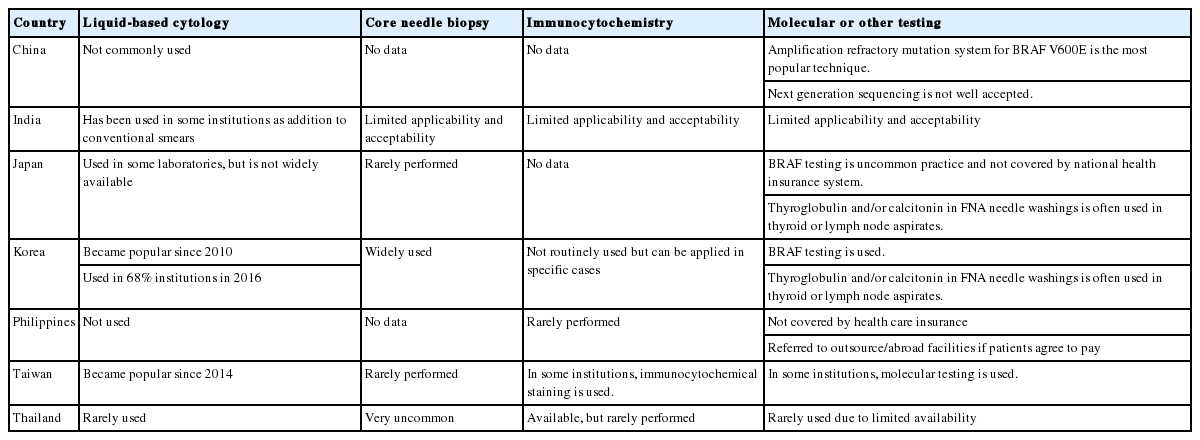

Table 6.
Ancillary tests in thyroid FNA cytology
Country Liquid-based cytology Core needle biopsy Immunocytochemistry Molecular or other testing
China Not commonly used No data No data Amplification refractory mutation system for BRAF V600E is the most popular technique.
Next generation sequencing is not well accepted.
India Has been used in some institutions as addition to conventional smears Limited applicability and acceptability Limited applicability and acceptability Limited applicability and acceptability
Japan Used in some laboratories, but is not widely available Rarely performed No data BRAF testing is uncommon practice and not covered by national health insurance system.
Thyroglobulin and/or calcitonin in FNA needle washings is often used in thyroid or lymph node aspirates.
Korea Became popular since 2010 Widely used Not routinely used but can be applied in specific cases BRAF testing is used.
Used in 68% institutions in 2016 Thyroglobulin and/or calcitonin in FNA needle washings is often used in thyroid or lymph node aspirates.
Philippines Not used No data Rarely performed Not covered by health care insurance
Referred to outsource/abroad facilities if patients agree to pay
Taiwan Became popular since 2014 Rarely performed In some institutions, immunocytochemical staining is used. In some institutions, molecular testing is used.
Thailand Rarely used Very uncommon Available, but rarely performed Rarely used due to limited availability

FNA, fine-needle aspiration.

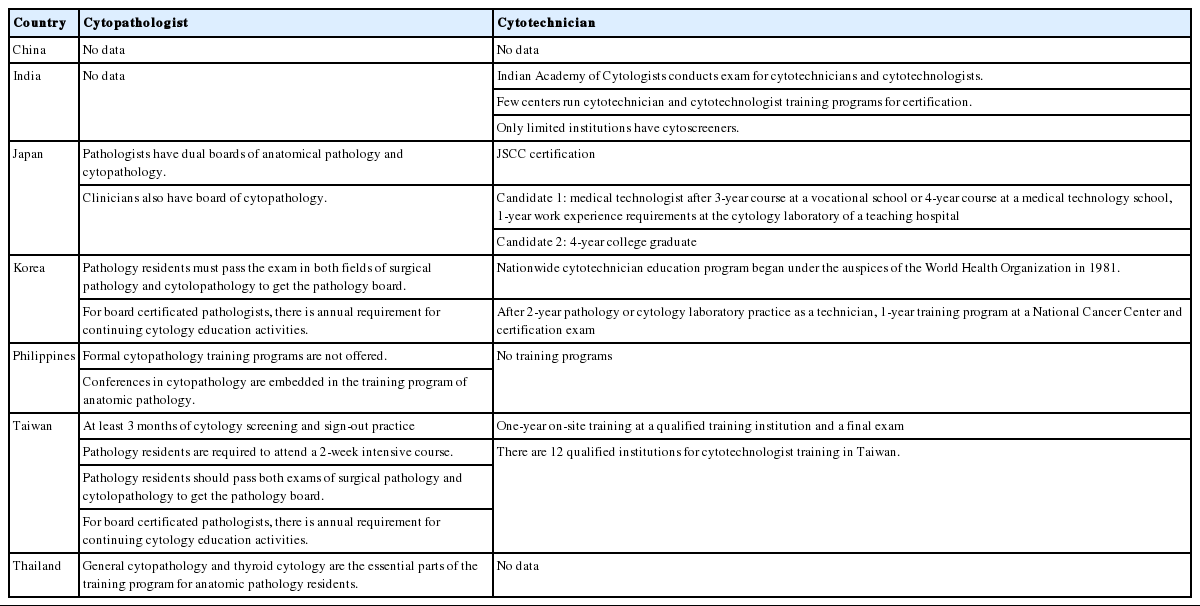

Table 7.
Training programs for cytopathologists and cytotechnicians
Country Cytopathologist Cytotechnician
China No data No data
India No data Indian Academy of Cytologists conducts exam for cytotechnicians and cytotechnologists.
Few centers run cytotechnician and cytotechnologist training programs for certification.
Only limited institutions have cytoscreeners.
Japan Pathologists have dual boards of anatomical pathology and cytopathology. JSCC certification
Clinicians also have board of cytopathology. Candidate 1: medical technologist after 3-year course at a vocational school or 4-year course at a medical technology school, 1-year work experience requirements at the cytology laboratory of a teaching hospital
Candidate 2: 4-year college graduate
Korea Pathology residents must pass the exam in both fields of surgical pathology and cytolopathology to get the pathology board. Nationwide cytotechnician education program began under the auspices of the World Health Organization in 1981.
For board certificated pathologists, there is annual requirement for continuing cytology education activities. After 2-year pathology or cytology laboratory practice as a technician, 1-year training program at a National Cancer Center and certification exam
Philippines Formal cytopathology training programs are not offered. No training programs
Conferences in cytopathology are embedded in the training program of anatomic pathology.
Taiwan At least 3 months of cytology screening and sign-out practice One-year on-site training at a qualified training institution and a final exam
Pathology residents are required to attend a 2-week intensive course. There are 12 qualified institutions for cytotechnologist training in Taiwan.
Pathology residents should pass both exams of surgical pathology and cytolopathology to get the pathology board.
For board certificated pathologists, there is annual requirement for continuing cytology education activities.
Thailand General cytopathology and thyroid cytology are the essential parts of the training program for anatomic pathology residents. No data

JSCC, Japanese Society of Clinical Cytology.

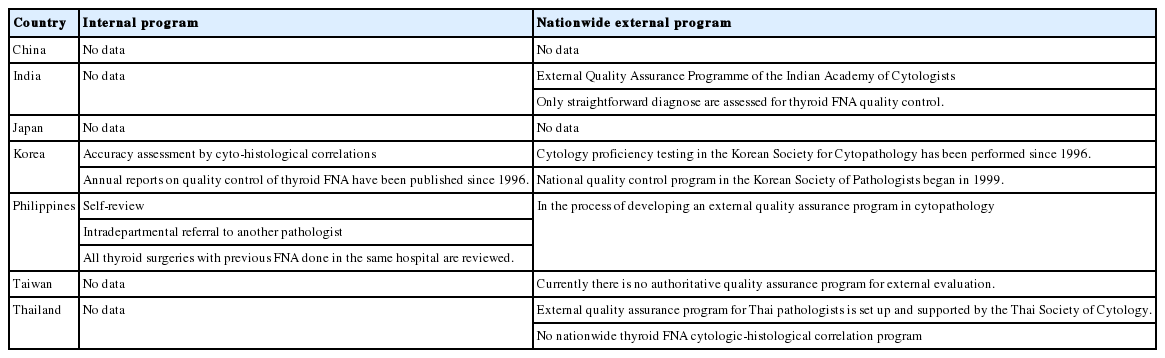

Table 8.
Quality assurance and quality control programs in thyroid FNA cytology
Country Internal program Nationwide external program
China No data No data
India No data External Quality Assurance Programme of the Indian Academy of Cytologists
Only straightforward diagnose are assessed for thyroid FNA quality control.
Japan No data No data
Korea Accuracy assessment by cyto-histological correlations Cytology proficiency testing in the Korean Society for Cytopathology has been performed since 1996.
Annual reports on quality control of thyroid FNA have been published since 1996. National quality control program in the Korean Society of Pathologists began in 1999.
Philippines Self-review In the process of developing an external quality assurance program in cytopathology
Intradepartmental referral to another pathologist
All thyroid surgeries with previous FNA done in the same hospital are reviewed.
Taiwan No data Currently there is no authoritative quality assurance program for external evaluation.
Thailand No data External quality assurance program for Thai pathologists is set up and supported by the Thai Society of Cytology.
No nationwide thyroid FNA cytologic-histological correlation program

FNA, fine-needle aspiration.

  • 1. Haugen BR, Alexander EK, Bible KC, et al. 2015 American Thyroid Association management guidelines for adult patients with thyroid nodules and differentiated thyroid cancer: the American Thyroid Association Guidelines Task Force on Thyroid Nodules and Differentiated Thyroid Cancer. Thyroid 2016; 26: 1-133. PubMedPMC
  • 2. Paschke R, Cantara S, Crescenzi A, Jarzab B, Musholt TJ, Sobrinho Simoes M. European Thyroid Association guidelines regarding thyroid nodule molecular fine-needle aspiration cytology diagnostics. Eur Thyroid J 2017; 6: 115-29. ArticlePubMedPMCPDF
  • 3. Cibas ES, Ali SZ; NCI Thyroid FNA State of the Science Conference. The Bethesda System For Reporting Thyroid Cytopathology. Am J Clin Pathol 2009; 132: 658-65. ArticlePubMedPDF
  • 4. Bychkov A, Kakudo K, Hong S. Current practices of thyroid fine-needle aspiration in Asia: a missing voice. J Pathol Transl Med 2017; 51: 517-20. ArticlePubMedPMCPDF
  • 5. Agarwal S, Jain D. Thyroid cytology in India: contemporary review and meta-analysis. J Pathol Transl Med 2017; 51: 533-47. ArticlePubMedPMCPDF
  • 6. Cha YJ, Pyo JY, Hong S, et al. Thyroid fine-needle aspiration cytology practice in Korea. J Pathol Transl Med 2017; 51: 521-7. ArticlePubMedPMCPDF
  • 7. Hang JF, Hsu CY, Lai CR. Thyroid fine-needle aspiration in Taiwan: the history and current practice. J Pathol Transl Med 2017; 51: 560-4. ArticlePubMedPMCPDF
  • 8. Keelawat S, Rangdaeng S, Koonmee S, Jitpasutham T, Bychkov A. Current status of thyroid fine-needle aspiration practice in Thailand. J Pathol Transl Med 2017; 51: 565-70. ArticlePubMedPMCPDF
  • 9. Liu Z, Liu D, Ma B, et al. History and practice of thyroid fine-needle aspiration in China, based on retrospective study of the practice in Shandong University Qilu Hospital. J Pathol Transl Med 2017; 51: 528-32. ArticlePubMedPMCPDF
  • 10. Satoh S, Yamashita H, Kakudo K. Thyroid cytology: the Japanese system and experience at Yamashita Thyroid Hospital. J Pathol Transl Med 2017; 51: 548-54. ArticlePubMedPMCPDF
  • 11. Abelardo AD. Thyroid fine-needle aspiration practice in the Philippines. J Pathol Transl Med 2017; 51: 555-9. ArticlePubMedPMCPDF
  • 12. Martin HE, Ellis EB. Biopsy by needle puncture and aspiration. Ann Surg 1930; 92: 169-81. ArticlePubMedPMC
  • 13. Soderstrom N. Puncture of goiters for aspiration biopsy. Acta Med Scand 1952; 144: 237-44. ArticlePubMed
  • 14. Cramer H. Fine-needle aspiration cytology of the thyroid: an appraisal. Cancer 2000; 90: 325-9. ArticlePubMed
  • 15. Diamantis A, Magiorkinis E, Koutselini H. Fine-needle aspiration (FNA) biopsy: historical aspects. Folia Histochem Cytobiol 2009; 47: 191-7. ArticlePubMedPDF
  • 16. Lee SH, Kim MH, Bae JS, Lim DJ, Jung SL, Jung CK. Clinical outcomes in patients with non-diagnostic thyroid fine needle aspiration cytology: usefulness of the thyroid core needle biopsy. Ann Surg Oncol 2014; 21: 1870-7. ArticlePubMedPDF
  • 17. Takada N, Hirokawa M, Suzuki A, Higuchi M, Kuma S, Miyauchi A. Reappraisal of “cyst fluid only” on thyroid fine-needle aspiration cytology. Endocr J 2017; 64: 759-65. ArticlePubMed
  • 18. Jung CK, Lee A, Jung ES, Choi YJ, Jung SL, Lee KY. Split sample comparison of a liquid-based method and conventional smears in thyroid fine needle aspiration. Acta Cytol 2008; 52: 313-9. ArticlePubMed
  • 19. Medicar. Medicaid and CLIA programs: regulations implementing the Clinical Laboratory Improvement Amendments of 1988 (CLIA)-HCFA: final rule with comment period. Fed Regist 1992; 57: 7002-186. PubMed

Figure & Data

References

    Citations

    Citations to this article as recorded by
    • Impact of Thyroid Cancers on Thyroid Hormones among Patients Attended Tripoli University Hospital
      Salah Elbaruni, Magdoline Almehdawi, Lubna Badi, Najua Ferrara, Nidal Bilkhier
      AlQalam Journal of Medical and Applied Sciences.2024; : 107.     CrossRef
    • Differentiating BRAF V600E- and RAS-like alterations in encapsulated follicular patterned tumors through histologic features: a validation study
      Chankyung Kim, Shipra Agarwal, Andrey Bychkov, Jen-Fan Hang, Agnes Stephanie Harahap, Mitsuyoshi Hirokawa, Kennichi Kakudo, Somboon Keelawat, Chih-Yi Liu, Zhiyan Liu, Truong Phan-Xuan Nguyen, Chanchal Rana, Huy Gia Vuong, Yun Zhu, Chan Kwon Jung
      Virchows Archiv.2024; 484(4): 645.     CrossRef
    • Fine needle aspiration cytology diagnoses of follicular thyroid carcinoma: results from a multicenter study in Asia
      Hee Young Na, Miyoko Higuchi, Shinya Satoh, Kaori Kameyama, Chan Kwon Jung, Su-Jin Shin, Shipra Agarwal, Jen-Fan Hang, Yun Zhu, Zhiyan Liu, Andrey Bychkov, Kennichi Kakudo, So Yeon Park
      Journal of Pathology and Translational Medicine.2024; 58(6): 331.     CrossRef
    • Cytological evaluation of thyroid nodules in children and young adults: a multi-institutional experience
      Chanchal Rana, Neha Nigam, Shipra Agarwal, Prabhakar Mishra, Akanksha Singh, Andrey Bychkov
      Endocrine.2023; 80(3): 580.     CrossRef
    • The Asian Thyroid Working Group, from 2017 to 2023
      Kennichi Kakudo, Chan Kwon Jung, Zhiyan Liu, Mitsuyoshi Hirokawa, Andrey Bychkov, Huy Gia Vuong, Somboon Keelawat, Radhika Srinivasan, Jen-Fan Hang, Chiung-Ru Lai
      Journal of Pathology and Translational Medicine.2023; 57(6): 289.     CrossRef
    • Core Needle Biopsy in Suspicious Malignant Thyroid Nodules with Repeated Nondiagnostic Fine Needle Aspiration
      Farrokh Heidari, Firouzeh Heidari, Mohammad Sadeq Najafi, Reza Ansari, Kayvan Aghazadeh, Saeed Sohrabpour, Ebrahim Karimi
      Indian Journal of Otolaryngology and Head & Neck Surgery.2022; 74(S2): 2071.     CrossRef
    • Molecular Testing for Thyroid Nodules: The Experience at McGill University Teaching Hospitals in Canada
      Mohannad Rajab, Richard J. Payne, Véronique-Isabelle Forest, Marc Pusztaszeri
      Cancers.2022; 14(17): 4140.     CrossRef
    • Cytologic diagnosis of medullary thyroid carcinoma in the Asia‐Pacific region
      Chih‐Yi Liu, Andrey Bychkov, Shipra Agarwal, Yun Zhu, Jen‐Fan Hang, Chiung‐Ru Lai, Hee Young Na, Weiwei Li, Zhiyan Liu, Deepali Jain, Ayana Suzuki, Mitsuyoshi Hirokawa, Noel Chia, Min En Nga, Tikamporn Jitpasutham, Somboon Keelawat, So Yeon Park, Shinya S
      Diagnostic Cytopathology.2021; 49(1): 60.     CrossRef
    • Constitutive Cytomorphologic Features of Medullary Thyroid Carcinoma Using Different Staining Methods
      Chih-Yi Liu, Chien-Chin Chen, Andrey Bychkov, Shipra Agarwal, Yun Zhu, Jen-Fan Hang, Chiung-Ru Lai, Hee Young Na, So Yeon Park, Weiwei Li, Zhiyan Liu, Deepali Jain, Ayana Suzuki, Mitsuyoshi Hirokawa, Noel Chia, Min En Nga, Tikamporn Jitpasutham, Somboon K
      Diagnostics.2021; 11(8): 1396.     CrossRef
    • Molecular Correlates and Nuclear Features of Encapsulated Follicular-Patterned Thyroid Neoplasms
      Chan Kwon Jung, Andrey Bychkov, Dong Eun Song, Jang-Hee Kim, Yun Zhu, Zhiyan Liu, Somboon Keelawat, Chiung-Ru Lai, Mitsuyoshi Hirokawa, Kaori Kameyama, Kennichi Kakudo
      Endocrinology and Metabolism.2021; 36(1): 123.     CrossRef
    • Clinical Outcome of Fine Needle Aspiration Cytology and Washout Thyroglobulin in Suspicious Lymph Nodes in Differentiated Thyroid Carcinoma: Discordant Results in Real-World Practice
      Jeongmin Lee, Hye Lim Park, Kwanhoon Jo, Min-Hee Kim, Ja Seong Bae, Sohee Lee, Chan Kwon Jung, So-Lyung Jung, Dong-Jun Lim
      International Journal of Thyroidology.2021; 14(1): 18.     CrossRef
    • Fine-needle Aspiration Washout Precipitation Specimens: An Acceptable Supplement to Genetic Mutation Detection of Thyroid Nodules
      Yongmei Cui, Xiangqi Huang, Jinrui Guo, Nana Zhang, Jing Liang, Yiwang Zhang, Yueting Liao, Dan He
      Technology in Cancer Research & Treatment.2021;[Epub]     CrossRef
    • Emerging Biomarkers in Thyroid Practice and Research
      Shipra Agarwal, Andrey Bychkov, Chan-Kwon Jung
      Cancers.2021; 14(1): 204.     CrossRef
    • Differences in surgical resection rate and risk of malignancy in thyroid cytopathology practice between Western and Asian countries: A systematic review and meta‐analysis
      Huy Gia Vuong, Hanh Thi Tuyet Ngo, Andrey Bychkov, Chan Kwon Jung, Trang Huyen Vu, Kim Bach Lu, Kennichi Kakudo, Tetsuo Kondo
      Cancer Cytopathology.2020; 128(4): 238.     CrossRef
    • Thyroid fine-needle aspiration cytology in Taiwan: a nationwide survey and literature update
      Chien-Chin Chen, Jen-Fan Hang, Chih-Yi Liu, Yeh-Han Wang, Chiung-Ru Lai
      Journal of Pathology and Translational Medicine.2020; 54(5): 361.     CrossRef
    • Pathological diagnosis of thyroid nodules based on core needle biopsies: comparative study between core needle biopsies and resected specimens in 578 cases
      Yan Xiong, Limin Yan, Lin Nong, Yalin Zheng, Ting Li
      Diagnostic Pathology.2019;[Epub]     CrossRef
    • Noninvasive Follicular Thyroid Neoplasm with Papillary-Like Nuclear Features in Asian Practice: Perspectives for Surgical Pathology and Cytopathology
      Andrey Bychkov, Chan Kwon Jung, Zhiyan Liu, Kennichi Kakudo
      Endocrine Pathology.2018; 29(3): 276.     CrossRef
    • The History of Korean Thyroid Pathology
      Soon Won Hong, Chan Kwon Jung
      International Journal of Thyroidology.2018; 11(1): 15.     CrossRef
    • The Usefulness of Immunocytochemistry of CD56 in Determining Malignancy from Indeterminate Thyroid Fine-Needle Aspiration Cytology
      Hyunseo Cha, Ju Yeon Pyo, Soon Won Hong
      Journal of Pathology and Translational Medicine.2018; 52(6): 404.     CrossRef
    • Recent Advances in Core Needle Biopsy for Thyroid Nodules
      Chan Kwon Jung, Jung Hwan Baek
      Endocrinology and Metabolism.2017; 32(4): 407.     CrossRef

    • PubReader PubReader
    • ePub LinkePub Link
    • Cite this Article
      Cite this Article
      export Copy Download
      Close
      Download Citation
      Download a citation file in RIS format that can be imported by all major citation management software, including EndNote, ProCite, RefWorks, and Reference Manager.
      Format:
      • RIS — For EndNote, ProCite, RefWorks, and most other reference management software
      • BibTeX — For JabRef, BibDesk, and other BibTeX-specific software
      Include:
      • Citation for the content below
      The Use of Fine-Needle Aspiration (FNA) Cytology in Patients with Thyroid Nodules in Asia: A Brief Overview of Studies from the Working Group of Asian Thyroid FNA Cytology
      J Pathol Transl Med. 2017;51(6):571-578.   Published online October 27, 2017
      DOI: https://doi.org/10.4132/jptm.2017.10.19
      Close
    • XML DownloadXML Download
    The Use of Fine-Needle Aspiration (FNA) Cytology in Patients with Thyroid Nodules in Asia: A Brief Overview of Studies from the Working Group of Asian Thyroid FNA Cytology
    The Use of Fine-Needle Aspiration (FNA) Cytology in Patients with Thyroid Nodules in Asia: A Brief Overview of Studies from the Working Group of Asian Thyroid FNA Cytology
    China India Japan Korea Philippines Taiwan Thailand
    1950s 1950s: Introduction of cytology - 1952: Introduction of thyroid FNA - - - -
    1960s - 1965: First attempt of needle biopsy of thyroid 1962: Japanese Society of Clinical Cytology was founded. - - - -
    1970s 1970-1980s: FNA was applied to thyroid. 1970: Indian Academy of Cytologists 1972: First report of thyroid FNA cytology by Toriya, I to Hospital 1977: Thyroid FNA was introduced by a physician, Korean Thyroid Study group was founded. - 1979: Tien-Chun Chang, an endocrinologist at National Taiwan University Hospital, started thyroid FNA -
    1972: First Chinese FNA book-Atlas of clinical cytology 1975: First publication on FNA by Gupta et al.
    1980s 1985: Chinese Academy of Cytology was founded and the first National Clinical Cytology Conference was held. 1987: First paper on thyroid FNA cytology by Rege et al. - 1981: Cytology training program for pathologists and cytotechnicians Late 1980s: Thyroid FNA started at the Philippine General Hospital. 1981: First article on thyroid FNA was published in a local journal by Tien-Chun Chang. Endocrinologists started experience with thyroid.
    1986: The Korean Society for Cytopathology was founded. 1987: Aspiration cytology unit was established in the Department of Pathology, University of the Philippines. 1988: Taiwan Society of Clinical Cytology was founded. 1986: Pathologists started to interpret thyroid FNA.
    1989: Articles on thyroid FNA were published in international journals.
    1990s 1990s: Some of the hospitals started US-guided thyroid FNA. - 1990s: Wide introduction of US-guidance for thyroid FNA 1996: Cytology proficiency testing has been performed since 1996. 1990s: Private hospitals in the Metro Manila started practice of thyroid FNA. 1995: First color atlas of thyroid and parathyroid cytology -
    2000s 2007: Cytology Operational Manual and Quality Control Standards were proposed by the Cytology Section of the Chinese Pathology Association. - - 2006: Korean management guidelines for patients with thyroid nodules and thyroid cancer - - -
    2007: Korean Endocrine Pathology Study Group was founded.
    2008: Korean Thyroid Association (KTA) was founded.
    2010s - 2011: Endocrine Society of India management guidelines for patients with thyroid nodules 2013: The Japan Thyroid Association Guidelines for the management of thyroid nodules 2010: Revised KTA management guidelines 2010: Radiologists, endocrinologists, and cytopathologists started US-guided thyroid FNA. - 2000: Thai Society of Cytology was founded,
    2016: 2016 Revised KTA management guidelines 2015: Guidelines for the diagnosis and treatment of thyroid cancer
    Country Sampling Interpretation
    China Primarily performed in endocrinology department in 1970–80s. Primarily performed in endocrinology department in 1970–80s.
    After 1987, thyroid FNA began to be popular in the pathology department. After 1987, thyroid FNA began to be interpreted mainly by pathologists.
    Thyroid FNA is not yet well accepted in China.
    Most general hospital use frozen section as a diagnostic method instead of thyroid FNA.
    India Blind, palpation-guided FNAs performed by cytopathologists Interpretation done by pathologists
    US-guided FNA performed by clinicians or radiologists Rapid on-site evaluation done in few academic institutions
    Palpation-guided FNA appears to be the most commonly used technique.
    Japan US-guided FNA usually performed by clinicians Pathologists and clinicians with a board certification in cytopathology
    Korea US-guided FNA usually performed by clinicians Pathologists (cytopathologists) only interpret the thyroid FNA.
    Philippines Thyroid FNA procedure under US-guidance is performed by pathologists and clinicians. Majority of pathologists report the diagnosis of cytology.
    All interpretations are rendered by the pathologist.
    Taiwan Radiologists are the major performer of thyroid FNA. Pathologists are the main diagnostician.
    US is used in most cases. Before 1995, clinicians used to be both the performer and the interpreter of thyroid FNA.
    Thailand FNA procedure is universally performed by clinicians. Almost all cases of thyroid FNA cytology are signed out by certified pathologists.
    In academic environment, trainees are frequently responsible to perform FNA. Cytotechnologists are not involved in thyroid FNA.
    Few endocrinologists sign out thyroid FNA in academic centers.
    Rapid on-site evaluation is rarely performed.
    Country Staining method
    China Wrights staining is popular in endocrine and clinical laboratory department.
    H&E stain is common in pathology department.
    India Combination of Romanowsky (May-Grunwald-Giemsa stain) and Papanicolaou stains is most widely used.
    H&E stain in few institutions
    Japan Papanicolaou stain is the most widely used.
    Giemsa stain or Diff-Quik stain
    Korea Papanicolaou stain is the most widely used.
    H&E or Giemsa stain are used in some institutions.
    Philippines Papanicolaou stain
    Diff-Quik stain
    H&E stain in cell blocks
    Taiwan Papanicolaou stain
    Liu stain
    Thailand Combination of Papanicolaou and Diff-Quik stains are most widely used.
    Country Before TBSRTC After TBSRTC
    China No data TBSRTC is the most widely accepted.
    India No data TBSRTC is the most widely used.
    Japan General Rules for the Description of Thyroid Cancer (GRDTC): adapted from the 1996 Papanicolaou Society recommendations; published by the Japanese Society of Thyroid Surgery in 2005 and updated in 2006 GRDTC system is widely used.
    Japanese system for thyroid FNA cytology published by the Japan Thyroid Association (JTA) in 2013: used in several high-vdume thyroid surgery centers
    TBSRTC is rarely used.
    Korea Not standardized and varied, but mostly followed guidelines of the Papanicolaou Society of Cytopathology TBSRTC is the most widely accepted.
    Philippines Based on histopathologic terminology of thyroid disorder TBSRTC is the most widely used.
    Taiwan All investigators used different diagnostic categories. TBSRTC or the 6-tier system corresponding to each Bethesda category
    Thailand Not standardized and varied, e.g., thyroid FNA reporting was based on specific diagnosis of the lesions. TBSRTC is the most widely accepted.
    Country Criteria for non-diagnostic FNA Incidence of non-diagnostic FNA
    China TBSRTC 3.6% at one institution
    India TBSRTC 7.4% (0.5%-25.7%) from 38 studies
    Different criteria in a study: 10 clusters are needed with each having more than 20 cells; in case of presence of tissue fragments, minimum number of fragments required is 8.
    Royal College of Pathologists guidelines in one study
    Japan General Rules for the Description of Thyroid Cancer system 10% according to the Japanese system
    Japanese system
    Korea TBSRTC 12.4% (0%-32.6%) from 12 institutions
    Philippines TBRSTC 1.3% and 23.1% from 2 studies
    Taiwan Variable but different from TBRSTCa 8% at one institution
    Thailand TBSRTC 12.7%-47.6% from three institutions
    Country Liquid-based cytology Core needle biopsy Immunocytochemistry Molecular or other testing
    China Not commonly used No data No data Amplification refractory mutation system for BRAF V600E is the most popular technique.
    Next generation sequencing is not well accepted.
    India Has been used in some institutions as addition to conventional smears Limited applicability and acceptability Limited applicability and acceptability Limited applicability and acceptability
    Japan Used in some laboratories, but is not widely available Rarely performed No data BRAF testing is uncommon practice and not covered by national health insurance system.
    Thyroglobulin and/or calcitonin in FNA needle washings is often used in thyroid or lymph node aspirates.
    Korea Became popular since 2010 Widely used Not routinely used but can be applied in specific cases BRAF testing is used.
    Used in 68% institutions in 2016 Thyroglobulin and/or calcitonin in FNA needle washings is often used in thyroid or lymph node aspirates.
    Philippines Not used No data Rarely performed Not covered by health care insurance
    Referred to outsource/abroad facilities if patients agree to pay
    Taiwan Became popular since 2014 Rarely performed In some institutions, immunocytochemical staining is used. In some institutions, molecular testing is used.
    Thailand Rarely used Very uncommon Available, but rarely performed Rarely used due to limited availability
    Country Cytopathologist Cytotechnician
    China No data No data
    India No data Indian Academy of Cytologists conducts exam for cytotechnicians and cytotechnologists.
    Few centers run cytotechnician and cytotechnologist training programs for certification.
    Only limited institutions have cytoscreeners.
    Japan Pathologists have dual boards of anatomical pathology and cytopathology. JSCC certification
    Clinicians also have board of cytopathology. Candidate 1: medical technologist after 3-year course at a vocational school or 4-year course at a medical technology school, 1-year work experience requirements at the cytology laboratory of a teaching hospital
    Candidate 2: 4-year college graduate
    Korea Pathology residents must pass the exam in both fields of surgical pathology and cytolopathology to get the pathology board. Nationwide cytotechnician education program began under the auspices of the World Health Organization in 1981.
    For board certificated pathologists, there is annual requirement for continuing cytology education activities. After 2-year pathology or cytology laboratory practice as a technician, 1-year training program at a National Cancer Center and certification exam
    Philippines Formal cytopathology training programs are not offered. No training programs
    Conferences in cytopathology are embedded in the training program of anatomic pathology.
    Taiwan At least 3 months of cytology screening and sign-out practice One-year on-site training at a qualified training institution and a final exam
    Pathology residents are required to attend a 2-week intensive course. There are 12 qualified institutions for cytotechnologist training in Taiwan.
    Pathology residents should pass both exams of surgical pathology and cytolopathology to get the pathology board.
    For board certificated pathologists, there is annual requirement for continuing cytology education activities.
    Thailand General cytopathology and thyroid cytology are the essential parts of the training program for anatomic pathology residents. No data
    Country Internal program Nationwide external program
    China No data No data
    India No data External Quality Assurance Programme of the Indian Academy of Cytologists
    Only straightforward diagnose are assessed for thyroid FNA quality control.
    Japan No data No data
    Korea Accuracy assessment by cyto-histological correlations Cytology proficiency testing in the Korean Society for Cytopathology has been performed since 1996.
    Annual reports on quality control of thyroid FNA have been published since 1996. National quality control program in the Korean Society of Pathologists began in 1999.
    Philippines Self-review In the process of developing an external quality assurance program in cytopathology
    Intradepartmental referral to another pathologist
    All thyroid surgeries with previous FNA done in the same hospital are reviewed.
    Taiwan No data Currently there is no authoritative quality assurance program for external evaluation.
    Thailand No data External quality assurance program for Thai pathologists is set up and supported by the Thai Society of Cytology.
    No nationwide thyroid FNA cytologic-histological correlation program
    Table 1. A brief overview of the history of thyroid FNA cytology in Asian countries

    FNA, fine-needle aspiration; US, ultrasound.

    Table 2. Thyroid FNA performer and interpreter

    FNA, fine-needle aspiration; US, ultrasound.

    Table 3. Staining methods for thyroid fine-needle aspiration cytology specimens

    H&E, hematoxylin and eosin.

    Table 4. Reporting system of thyroid FNA cytology

    FNA, fine-needle aspiration; TBSRTC, The Bethesda System for Reporting Thyroid Cytopathology.

    Table 5. Non-diagnostic thyroid FNA

    FNA, fine-needle aspiration; TBSRTC, the Bethesda System for Reporting Thyroid Cytopathology.

    Most Taiwan pathologists consider that the specimen is negative, but not non-diagnostic when there are less than six groups but more than 50 follicular cells in total or a degenerative hemorrhagic cyst with scant benign follicular cells.

    Table 6. Ancillary tests in thyroid FNA cytology

    FNA, fine-needle aspiration.

    Table 7. Training programs for cytopathologists and cytotechnicians

    JSCC, Japanese Society of Clinical Cytology.

    Table 8. Quality assurance and quality control programs in thyroid FNA cytology

    FNA, fine-needle aspiration.

    Table 1.

    Table 2.

    Table 3.

    Table 4.

    Table 5.

    Table 6.

    Table 7.

    Table 8.

    J Pathol Transl Med : Journal of Pathology and Translational Medicine
    © The Korean Society of Pathologists and the Korean Society for Cytopathology.
    TOP
