Department of Pathology, Seoul National University Hospital, Seoul National University College of Medicine, Seoul, Korea
1Department of Pathology, Yonsei University College of Medicine, Seoul, Korea
2Department of Pathology, Seoul National University Bundang Hospital, Seoul National University College of Medicine, Seongnam, Korea
3Department of Pathology, SMG-SNU Boramae Medical Center, Seoul National University College of Medicine, Seoul, Korea
4Department of Pathology, Korea University Guro Hospital, Korea University School of Medicine, Seoul, Korea
5Department of Pathology, Inje University Sanggye Paik Hospital, Seoul, Korea
6Department of Pathology, Ulsan University Hospital, University of Ulsan College of Medicine, Ulsan, Korea
7Department of Pathology, Asan Medical Center, University of Ulsan College of Medicine, Seoul, Korea
8Department of Pathology, Samsung Medical Center, Sungkyunkwan University School of Medicine, Seoul, Korea
© 2017 The Korean Society of Pathologists/The Korean Society for Cytopathology
This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/4.0/) which permits unrestricted noncommercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

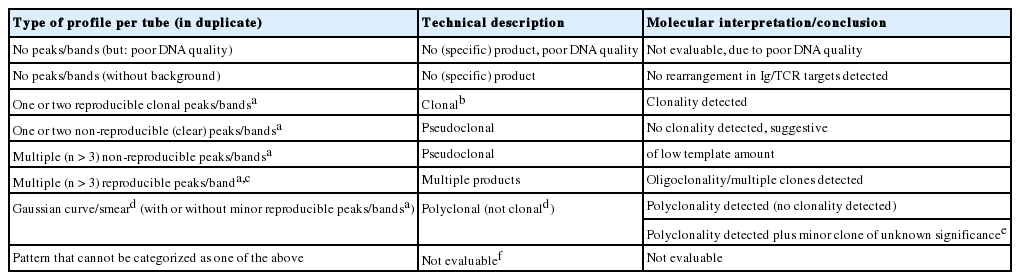

Type of profile per tube (in duplicate) | Technical description | Molecular interpretation/conclusion |
---|---|---|
No peaks/bands (but: poor DNA quality) | No (specific) product, poor DNA quality | Not evaluable, due to poor DNA quality |
No peaks/bands (without background) | No (specific) product | No rearrangement in Ig/TCR targets detected |
One or two reproducible clonal peaks/bandsa | Clonalb | Clonality detected |
One or two non-reproducible (clear) peaks/bandsa | Pseudoclonal | No clonality detected, suggestive |
Multiple (n > 3) non-reproducible peaks/bandsa | Pseudoclonal | of low template amount |
Multiple (n > 3) reproducible peaks/banda,c | Multiple products | Oligoclonality/multiple clones detected |
Gaussian curve/smeard (with or without minor reproducible peaks/bandsa) | Polyclonal (not clonald) | Polyclonality detected (no clonality detected) |
Polyclonality detected plus minor clone of unknown significancee | ||
Pattern that cannot be categorized as one of the above | Not evaluablef | Not evaluable |
Reprinted by permission from Macmillan Publishers Ltd: [Leukemia] Langerak et al. 2012;26:2159-71, [6] copyright (2012).
TCR, T-cell receptor.
aIn heteroduplex analysis the number of bands does not necessarily reflect the number of different polymerase chain reaction products, as additional heteroduplexes can be formed between products;
bClonal peaks/bands are not necessarily seen for every Ig/TCR target analyzed to reach the molecular conclusion ‘clonality detected’;
cFor IGK and TCRB loci up to four clonal products may be compatible with one clone;
dIn heteroduplex analysis a polyclonal smear may not always be smooth or clear, despite specific product in gel; hence this is scored as ‘not clonal’;
eFor those cases in which minor reproducible peaks/bands are detected in the polyclonal background;
fIn < 5% of polymerase chain reaction results the description per tube cannot be made.

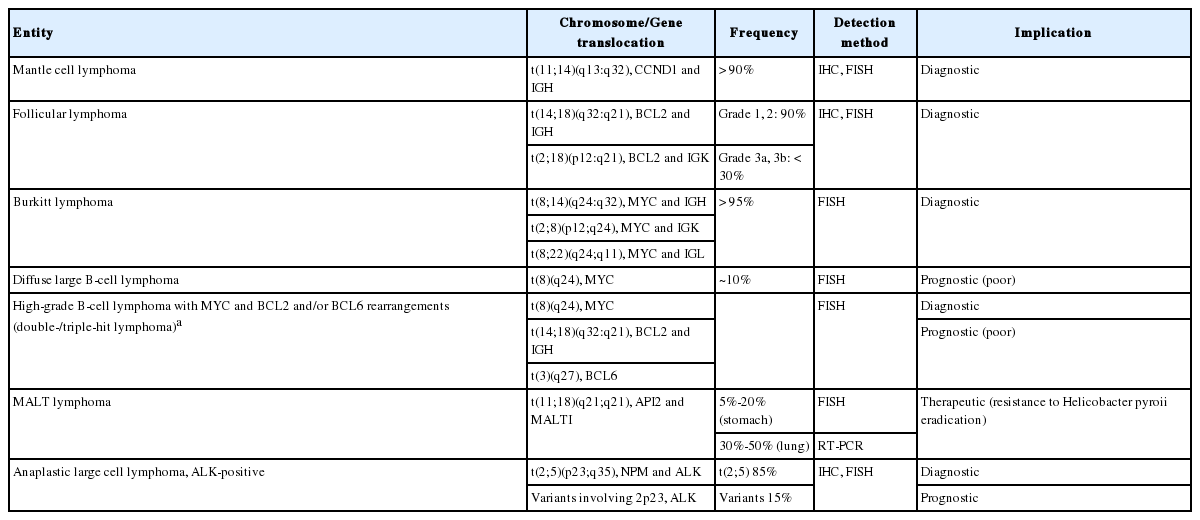

Entity | Chromosome/Gene translocation | Frequency | Detection method | Implication |
---|---|---|---|---|
Mantle cell lymphoma | t(11;14)(q13:q32), CCND1 and IGH | > 90% | IHC, FISH | Diagnostic |
Follicular lymphoma | t(14;18)(q32:q21), BCL2 and IGH | Grade 1, 2: 90% | IHC, FISH | Diagnostic |
t(2;18)(p12:q21), BCL2 and IGK | Grade 3a, 3b: < 30% | |||
Burkitt lymphoma | t(8;14)(q24:q32), MYC and IGH | > 95% | FISH | Diagnostic |
t(2;8)(p12;q24), MYC and IGK | ||||
t(8;22)(q24;q11), MYC and IGL | ||||
Diffuse large B-cell lymphoma | t(8)(q24), MYC | ~10% | FISH | Prognostic (poor) |
High-grade B-cell lymphoma with MYC and BCL2 and/or BCL6 rearrangements (double-/triple-hit lymphoma)a | t(8)(q24), MYC | FISH | Diagnostic | |
t(14;18)(q32:q21), BCL2 and IGH | Prognostic (poor) | |||
t(3)(q27), BCL6 | ||||
MALT lymphoma | t(11;18)(q21;q21), API2 and MALTI | 5%-20% (stomach) | FISH | Therapeutic (resistance to Helicobacter pyroii eradication) |
30%-50% (lung) | RT-PCR | |||
Anaplastic large cell lymphoma, ALK-positive | t(2;5)(p23;q35), NPM and ALK | t(2;5) 85% | IHC, FISH | Diagnostic |
Variants involving 2p23, ALK | Variants 15% | Prognostic |
Type of profile per tube (in duplicate) | Technical description | Molecular interpretation/conclusion |
---|---|---|
No peaks/bands (but: poor DNA quality) | No (specific) product, poor DNA quality | Not evaluable, due to poor DNA quality |
No peaks/bands (without background) | No (specific) product | No rearrangement in Ig/TCR targets detected |
One or two reproducible clonal peaks/bands |
Clonal |
Clonality detected |
One or two non-reproducible (clear) peaks/bands |
Pseudoclonal | No clonality detected, suggestive |
Multiple (n > 3) non-reproducible peaks/bands |
Pseudoclonal | of low template amount |
Multiple (n > 3) reproducible peaks/band |
Multiple products | Oligoclonality/multiple clones detected |
Gaussian curve/smear |
Polyclonal (not clonal |
Polyclonality detected (no clonality detected) |
Polyclonality detected plus minor clone of unknown significance |
||
Pattern that cannot be categorized as one of the above | Not evaluable |
Not evaluable |
Entity | Chromosome/Gene translocation | Frequency | Detection method | Implication |
---|---|---|---|---|
Mantle cell lymphoma | t(11;14)(q13:q32), CCND1 and IGH | > 90% | IHC, FISH | Diagnostic |
Follicular lymphoma | t(14;18)(q32:q21), BCL2 and IGH | Grade 1, 2: 90% | IHC, FISH | Diagnostic |
t(2;18)(p12:q21), BCL2 and IGK | Grade 3a, 3b: < 30% | |||
Burkitt lymphoma | t(8;14)(q24:q32), MYC and IGH | > 95% | FISH | Diagnostic |
t(2;8)(p12;q24), MYC and IGK | ||||
t(8;22)(q24;q11), MYC and IGL | ||||
Diffuse large B-cell lymphoma | t(8)(q24), MYC | ~10% | FISH | Prognostic (poor) |
High-grade B-cell lymphoma with MYC and BCL2 and/or BCL6 rearrangements (double-/triple-hit lymphoma) |
t(8)(q24), MYC | FISH | Diagnostic | |
t(14;18)(q32:q21), BCL2 and IGH | Prognostic (poor) | |||
t(3)(q27), BCL6 | ||||
MALT lymphoma | t(11;18)(q21;q21), API2 and MALTI | 5%-20% (stomach) | FISH | Therapeutic (resistance to Helicobacter pyroii eradication) |
30%-50% (lung) | RT-PCR | |||
Anaplastic large cell lymphoma, ALK-positive | t(2;5)(p23;q35), NPM and ALK | t(2;5) 85% | IHC, FISH | Diagnostic |
Variants involving 2p23, ALK | Variants 15% | Prognostic |

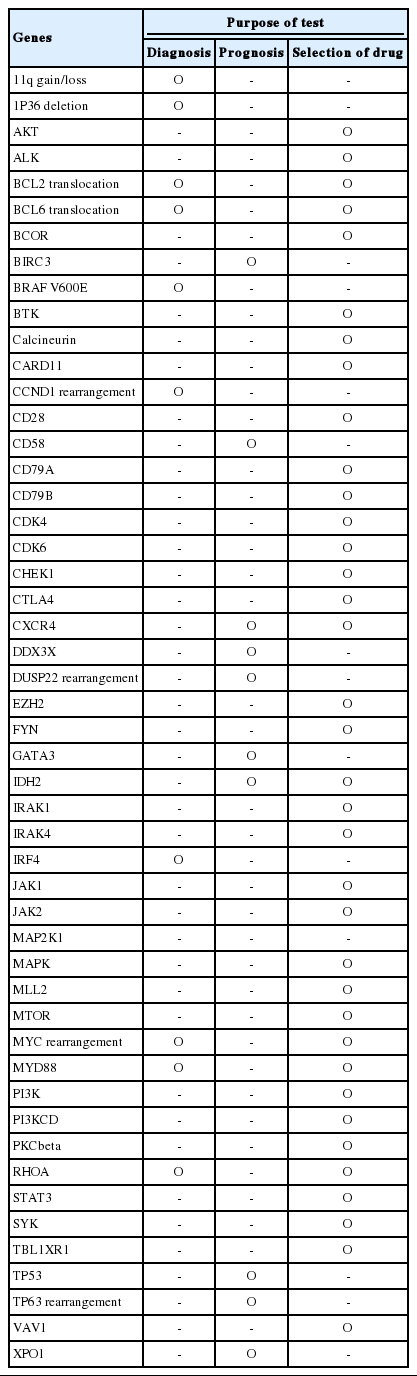

Genes | Purpose of test |
||
---|---|---|---|
Diagnosis | Prognosis | Selection of drug | |
11q gain/loss | O | - | - |
1P36 deletion | O | - | - |
AKT | - | - | O |
ALK | - | - | O |
BCL2 translocation | O | - | O |
BCL6 translocation | O | - | O |
BCOR | - | - | O |
BIRC3 | - | O | - |
BRAF V600E | O | - | - |
BTK | - | - | O |
Calcineurin | - | - | O |
CARD11 | - | - | O |
CCND1 rearrangement | O | - | - |
CD28 | - | - | O |
CD58 | - | O | - |
CD79A | - | - | O |
CD79B | - | - | O |
CDK4 | - | - | O |
CDK6 | - | - | O |
CHEK1 | - | - | O |
CTLA4 | - | - | O |
CXCR4 | - | O | O |
DDX3X | - | O | - |
DUSP22 rearrangement | - | O | - |
EZH2 | - | - | O |
FYN | - | - | O |
GATA3 | - | O | - |
IDH2 | - | O | O |
IRAK1 | - | - | O |
IRAK4 | - | - | O |
IRF4 | O | - | - |
JAK1 | - | - | O |
JAK2 | - | - | O |
MAP2K1 | - | - | - |
MAPK | - | - | O |
MLL2 | - | - | O |
MTOR | - | - | O |
MYC rearrangement | O | - | O |
MYD88 | O | - | O |
PI3K | - | - | O |
PI3KCD | - | - | O |
PKCbeta | - | - | O |
RHOA | O | - | O |
STAT3 | - | - | O |
SYK | - | - | O |
TBL1XR1 | - | - | O |
TP53 | - | O | - |
TP63 rearrangement | - | O | - |
VAV1 | - | - | O |
XPO1 | - | O | - |

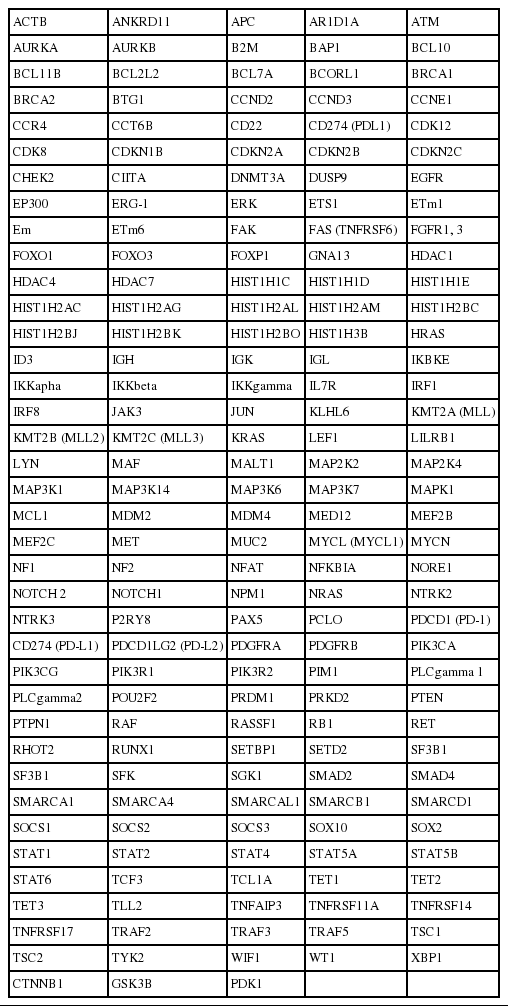

ACTB | ANKRD11 | APC | AR1D1A | ATM |
AURKA | AURKB | B2M | BAP1 | BCL10 |
BCL11B | BCL2L2 | BCL7A | BCORL1 | BRCA1 |
BRCA2 | BTG1 | CCND2 | CCND3 | CCNE1 |
CCR4 | CCT6B | CD22 | CD274 (PDL1) | CDK12 |
CDK8 | CDKN1B | CDKN2A | CDKN2B | CDKN2C |
CHEK2 | CIITA | DNMT3A | DUSP9 | EGFR |
EP300 | ERG-1 | ERK | ETS1 | ETm1 |
Em | ETm6 | FAK | FAS (TNFRSF6) | FGFR1, 3 |
FOXO1 | FOXO3 | FOXP1 | GNA13 | HDAC1 |
HDAC4 | HDAC7 | HIST1H1C | HIST1H1D | HIST1H1E |
HIST1H2AC | HIST1H2AG | HIST1H2AL | HIST1H2AM | HIST1H2BC |
HIST1H2BJ | HIST1H2BK | HIST1H2BO | HIST1H3B | HRAS |
ID3 | IGH | IGK | IGL | IKBKE |
IKKapha | IKKbeta | IKKgamma | IL7R | IRF1 |
IRF8 | JAK3 | JUN | KLHL6 | KMT2A (MLL) |
KMT2B (MLL2) | KMT2C (MLL3) | KRAS | LEF1 | LILRB1 |
LYN | MAF | MALT1 | MAP2K2 | MAP2K4 |
MAP3K1 | MAP3K14 | MAP3K6 | MAP3K7 | MAPK1 |
MCL1 | MDM2 | MDM4 | MED12 | MEF2B |
MEF2C | MET | MUC2 | MYCL (MYCL1) | MYCN |
NF1 | NF2 | NFAT | NFKBIA | NORE1 |
NOTCH 2 | NOTCH1 | NPM1 | NRAS | NTRK2 |
NTRK3 | P2RY8 | PAX5 | PCLO | PDCD1 (PD-1) |
CD274 (PD-L1) | PDCD1LG2 (PD-L2) | PDGFRA | PDGFRB | PIK3CA |
PIK3CG | PIK3R1 | PIK3R2 | PIM1 | PLCgamma 1 |
PLCgamma2 | POU2F2 | PRDM1 | PRKD2 | PTEN |
PTPN1 | RAF | RASSF1 | RB1 | RET |
RHOT2 | RUNX1 | SETBP1 | SETD2 | SF3B1 |
SF3B1 | SFK | SGK1 | SMAD2 | SMAD4 |
SMARCA1 | SMARCA4 | SMARCAL1 | SMARCB1 | SMARCD1 |
SOCS1 | SOCS2 | SOCS3 | SOX10 | SOX2 |
STAT1 | STAT2 | STAT4 | STAT5A | STAT5B |
STAT6 | TCF3 | TCL1A | TET1 | TET2 |
TET3 | TLL2 | TNFAIP3 | TNFRSF11A | TNFRSF14 |
TNFRSF17 | TRAF2 | TRAF3 | TRAF5 | TSC1 |
TSC2 | TYK2 | WIF1 | WT1 | XBP1 |
CTNNB1 | GSK3B | PDK1 |
Reprinted by permission from Macmillan Publishers Ltd: [Leukemia] Langerak TCR, T-cell receptor. In heteroduplex analysis the number of bands does not necessarily reflect the number of different polymerase chain reaction products, as additional heteroduplexes can be formed between products; Clonal peaks/bands are not necessarily seen for every Ig/TCR target analyzed to reach the molecular conclusion ‘clonality detected’; For In heteroduplex analysis a polyclonal smear may not always be smooth or clear, despite specific product in gel; hence this is scored as ‘not clonal’; For those cases in which minor reproducible peaks/bands are detected in the polyclonal background; In < 5% of polymerase chain reaction results the description per tube cannot be made.
IHC, immunohistochemistry; FISH, fluorescence Included in the 2016 Revision of World Health Organization classification.
NGS, next-generation sequencing.
NGS, next-generation sequencing.
