MATERIALS AND METHODS

Patients and data

OEC patients who underwent surgical resection at Pusan National University Hospital from 1998 to 2009 were selected for this study. All patients provided written informed consents and underwent surgical procedures. The biospecimens and data used for this study were provided by the Biobank of Pusan National University Hospital (PNUH), a member of the Korea Biobank Network. All samples derived from the National Biobank of Korea were obtained with the approval of institutional review board. After exclusion of cases with insufficient tissue material and clinical information, a total of 120 cases were enrolled and representative formalin-fixed paraffin tissue blocks were collected. Pathological data including histological type, pathological stage, tumor histological grade, nuclear grade, and mitosis were obtained from the primary pathology report. The histological tumor type was classified according to the World Health Organization criteria [16]. Histological grades were classified as well-, moderately, and poorly differentiated according to the Silverberg grading system [17]. The tumors were staged according to the International Federation of Gynecology and Obstetrics (FIGO) staging system (Table 1) [18].

Fresh tissue samples of OEC were obtained by surgical resection and stored in the Biobank of PNUH. For this study, tissue samples from 12 patients who underwent resection were examined. We evaluated 12 patients with serous carcinoma who received chemotherapy. Six patients who did not experience relapse for 18 months after chemotherapy were included in the good-response group, and six patients who experienced recurrence within 6 months of chemotherapy initiation to 8 months of chemotherapy completion were included in the poor-response group (Table 2).

Immunohistochemistry

CD109 expression was assessed using CD109 immunohistochemical staining. The slides were then dewaxed in xylene and dehydrated in ethanol. Staining was performed using BondMax-autostainer and other reagents (Leica Microsystems, Berlin, Germany). Deparaffinization was performed automatically in the autostainer with BondWash solution (Leica Microsystems) at 72°C for 30 minutes. After washing, the slides were incubated overnight at 4°C with a rabbit polyclonal anti-CD109 antibody (dilution 1:50, cat. No., HPA009292, Sigma-Aldrich, Merck KGaA, Darmstadt, Germany) and incubated with a horseradish peroxidase-conjugated goat anti-rabbit secondary antibody (dilution 1:100, cat. No., SA00001-2, ProteinTech Group, Inc., Wuhan Sanying Biotechnology, Wuhan, China) for 90 minutes at room temperature. Antibody binding was performed by incubating the slides for 1 minute with a solution of 1 drop of 3,3'-diamino-benzidine (20 ×) per 1.0 mL diamino-benzidine substrate buffer (cat. No. ZLI-9017, Origene Technologies, Inc., Beijing, China). The slides were then counterstained with EnVision FLEX hematoxylin (Dako, Agilent Technologies, Inc., Santa Clara, CA, USA) for 1 minute and dehydrated using ethanol and xylene. For negative control, staining was performed without primary antibody.

Assessment of immunohistochemical staining

Slides were evaluated using light microscopy. CD109 expression was detected through cytoplasmic and/or membranous staining of the tumor cells. The CD109 positivity of tumor cells was determined as follows: positive staining, ≥ 10% positive tumor cells and negative staining, < 10% positive tumor cells.

RT-qPCR

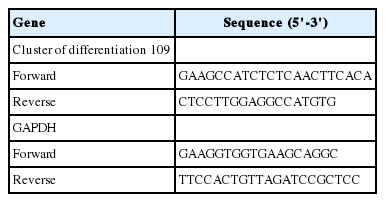

The mRNA levels of CD109 in the fresh tissue samples of OEC were measured using RT-qPCR. Total RNA was purified from cells using RNeasy mini prep kits (Qiagen, Valencia, CA, USA). cDNA was synthesized from 1 μg RNA using the ProtoScript First Strand cDNA Synthesis Kit (New England Biolabs, Ipswich, MA, USA). Differential RNA levels were assessed using Luna Universal qPCR Master Mix (New England Biolabs) and primers for each gene. Quantitative PCR reactions were performed using an ECO Real-Time PCR system (PCRmax, Straffordshire, UK) as follows: 95°C for 30 minutes followed by 40 cycles at 95°C for 10 seconds, 61°C for 30 seconds, and 72°C for 20 seconds. The PCR products were analyzed using ECO ware (PCRmax). All samples were normalized to the signal generated from glyceraldehyde 3-phosphate dehydrogenase using the primers presented in Table 3. The CD109 gene expression was generalized by comparing the relative expression of CD109 with the internal standard glyceraldehyde 3-phosphate dehydrogenase using the 2^-ΔΔCT method [19].

Statistical analysis

The Pearson’s chi-square test was used to assess statistical significance between CD109 expression and various clinicopathological characteristics. Overall survival and recurrence-free survival were estimated using Kaplan-Meier plots. Multivariate analyses to determine hazard ratios for overall survival and recurrence-free survival were performed using Cox regression analysis. All analyses were performed using SPSS software (IBM, Armonk, NY, USA). A p-value of < 0.05 was considered statistically significant.

RESULTS

Patient characteristics

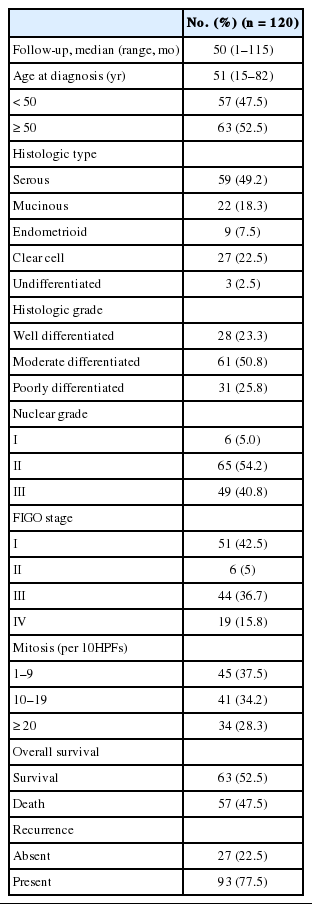

A series of 120 OEC cases was retrieved for this study. The follow-up period ranged from 1 to 115 months (median, 50 months), and the patient age ranged from 15 to 82 years (median, 50 years). There were 59 cases of serous carcinoma, 22 cases of mucinous carcinoma, nine cases of endometrioid carcinoma, 27 cases of clear cell carcinoma, and three cases of undifferentiated carcinoma. The overall survival rate was 52.5%, and the recurrence rate was 77.5%. Other clinicopathologic parameters are presented in Table 1.

CD109 expression in OEC

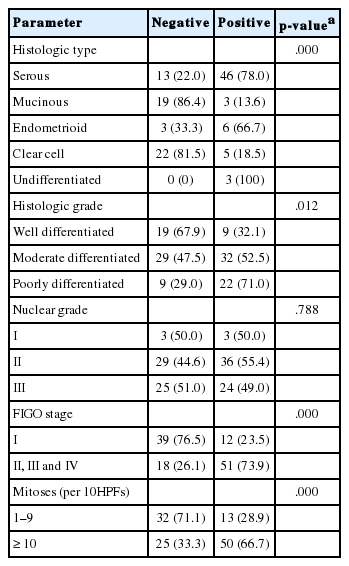

In OEC samples, the malignant tumor cells exhibited brownish CD109 staining in the membrane and cytoplasm (Fig. 1). CD109 expression was detected in 63 of the 120 OEC samples (52.5%). CD109 expression differed according to the histological type of tumor (p < .001). There was a statistically significantly increase in the expression of CD109 in serous, endometrioid, and undifferentiated carcinomas (77.4%). CD109 expression was associated with a higher histological tumor grade (p = .012). Twelve of 51 FIGO stage I tumors (23.5%) and 51 of 69 FIGO stage II, III, and IV tumors (73.9%) were positive for CD109 (p < .001). Thirteen of 45 tumors with < 10 mitotic events (28.9%) and 50 of 75 tumors with more than 10 mitotic events (66.7%) were positive for CD109 (p < .001). A high nuclear grade was not associated with CD109 expression (Table 4).

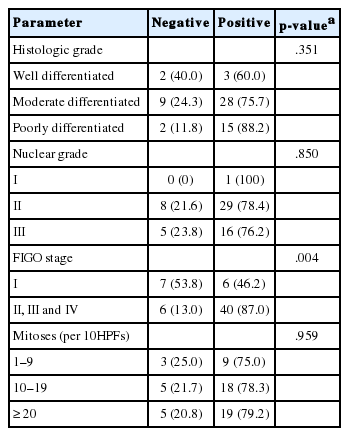

In the above results, CD109 positivity ratio varied according to the histologic type, and the following is the CD109 expression results in serous carcinoma that accounts for the largest percentage of OEC: Six of 13 FIGO stage I tumors (46.2%) and 40 of 46 FIGO stage II, III, and IV tumors (87.0%) were positive for CD109 (p = .004). Histologic grade, high nuclear grade, and high mitotic counts were not associated with CD109 expression (Table 5).

Association between CD109 expression and OEC prognosis

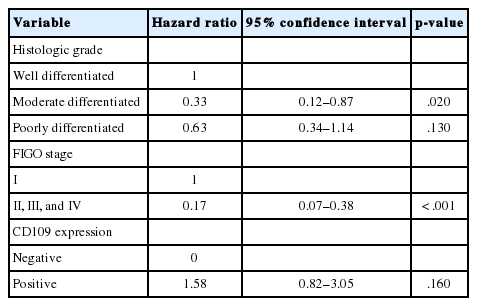

CD109 expression was associated with overall survival (p = .020) (Fig. 2), but not recurrence-free survival (p = .290) (Fig. 3). The 5-year survival rate was 42.5% in patients with CD109-positive results and 64.8% in patients with CD109-negative results (p = .020) (Fig. 2). Analysis of the variables using multivariate analysis showed that CD109 expression was not an independent risk factor for overall survival due to its low reliability (hazard ratio [HR], 1.58; p = .160; 95% confidence interval [CI], 0.82 to 3.05) (Table 6). In addition, CD109 expression was not an only risk factor for recurrence-free survival (HR, 2.06; p = .110; 95% CI, 0.83 to 5.09) (Table 7). Therefore, CD109 expression is not an independent prognostic factor but is helpful for predicting the prognosis of patients with OEC.

Immunohistochemical staining was performed in 37 patients with serous carcinoma who received chemotherapy, 21 patients belonged to the good-response group and 16 patients belonged to the poor-response group. The poor-response group had higher rates of CD109 expression than the good-response group (93.8% vs 66.7%, p = .047) (Table 8). Thus, CD109 is useful for predicting the chemotherapeutic effect in patients with OEC, especially serous carcinoma.

CD109 mRNA levels in OECs

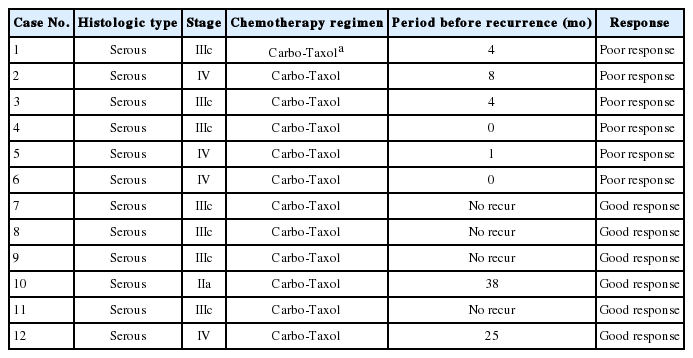

All 12 fresh OEC samples were examined for CD109 expression by RT-qPCR. The samples were limited to serous carcinoma of OEC. CD109 mRNA was significantly upregulated in the poor-response group compared with the good-response group (p = .001) (Fig. 4), suggesting that high CD109 expression level is associated with chemoresistance in patients with OEC.

DISCUSSION

The physiological function of CD109 has not been studied, yet it is highly expressed in various types of malignancies and several normal tissues [8,20]. It has recently been reported that CD109 expression is associated with tumor development and cell proliferation using human oral tumor tissues and cancer cell lines [21]. In addition, CD109 can predict prognosis in tumors such as myxofibrosarcoma [15]. In this study, we evaluated CD109 expression in OEC samples by immunohistochemical stains and RT-qPCR and found that an increased CD109 expression was associated with the prognosis and chemoresistance of OEC.

CD109 protein is a component of the TGF-β1 receptor system [9]. Tumor suppression occurs through the TGF-β1–signaling pathway in the early tumor stage; however, in malignantly transformed cells, TGF-β1 is severely dysregulated, resulting in the loss of tumor suppression [9]. CD109 expression is followed by a complex formation with the type I TGF-β1 receptor, which is required for the regulation of TGF-β1 signaling in early tumor cells [22]. Finally, CD109 degrades the TGF-β1 receptor and blocks TGF-β1 signaling, thereby preventing tumor suppression [23], which was confirmed in a mouse model [24]. In CD109-deficient mice, the TGF-β1 signaling pathway was enhanced and it suppressed skin tumorigenesis [24].

TGF-β1 plays an important role in chemoresistance in breast cancer and squamous cell carcinoma [25,26]. During TGF-β1 expression, cancer cells proliferate slowly in early tumor stage and lead to chemoresistance because they can be protected against DNA-damaging chemotherapeutic agents [26]. In myxofibrosarcomas, tumors with high CD109 expression level showed decreased expression of TGF-β1 with a good treatment effect [27]. However, tumors with low CD109 expression and high TGF-β1 expression showed chemoresistance [27]. The current case and the other cases mentioned above indicate that there are other underlying mechanisms stronger than the CD109–TGF-β1 signaling pathway. In our study, the relationship between CD109 expression and chemoresistance was identified, but TGF-β1 expression and its role were not confirmed. If both CD109 and TGF-β1 are found to be related to the chemoresistance of OEC, it will be helpful in treating patients. Therefore, further research is needed to confirm these findings in OEC.

CD109 expression has been associated with chemotherapeutic resistance in triple-negative breast cancers [28]. After chemotherapy was administered to patients with CD109-positive triple negative breast cancer, 50% of the patients showed disease progression and none of them showed complete response [28]. The same result was reported when examining the CD109 expression and chemotherapeutic effect in breast cancer and glioblastoma [29,30]. This may be due to the role of CD109 in the development of endothelial cells and induction of angiogenesis in contrary to the effect of chemotherapy regimen, which blocks tumor neovascularization [30]. In this study, CD109 was expressed at a higher rate in the poor-response group than in the good-response group. In addition, the expression level of CD109 mRNA was 2.88-fold higher in the poor-response group than in the good-response group. However, unlike breast cancer, most OECs are diagnosed at advanced stages, making it difficult to divide the chemotherapy response group into more detailed subgroups.

CD109 is involved in the pathogenesis and prognosis of some tumors. CD109 overexpression is known to induce cell growth in oral squamous cell carcinomas, and CD109-positive oral dysplastic lesions develop into squamous cell carcinoma within 3 years [21]. Although there is no correlation between the CD109 expression and mitosis, CD109 expression was associated with neoplastic cell growth [31]. Recently, a study suggested that CD109 expression is managed by cancer stem-like cells/cancer-initiating cells, which can initiate tumorigenesis and tumor growth in sarcomas [14]. Therefore, in the presence of cancer stem cells, CD109 expression may increase and malignancies or recurrence/metastasis may develop. In our study, CD109 expression was higher in the advanced stage, but OEC precursors such as borderline ovarian tumor is not included in the study. More research that can determine the association of CD109 with neoplastic cell growth in ovary tissue may be helpful in early detection and treatment of patients.

Based on our review, this is the first study on the relationship between CD109 expression and prognosis of OEC. The present study demonstrated that CD109 is highly expressed in OEC tissues. Immunohistochemical analysis of CD109 expression is useful for predicting overall survival but not recurrence-free survival. Regarding the chemotherapeutic effect on serous carcinoma, the poor-response group expressed increased mRNA levels of CD109 as compared to the good-response group. Therefore, identification of CD109 expression may help in predicting the survival and chemotherapeutic effect in patients with serous carcinoma of OEC. Further analysis of other factors related to CD109 is needed for careful management of patients with serous carcinoma of OEC.

Acknowledgments

Fig. 1.

Immunohistochemical staining of CD109 in ovarian epithelial carcinoma. (A) Positive in serous carcinoma. (B) Positive in mucinous carcinoma. (C) Positive in endometrioid carcinoma. (D) Positive in clear cell carcinoma. (E) Positive in undifferentiated carcinoma. (F) Negative in serous carcinoma.

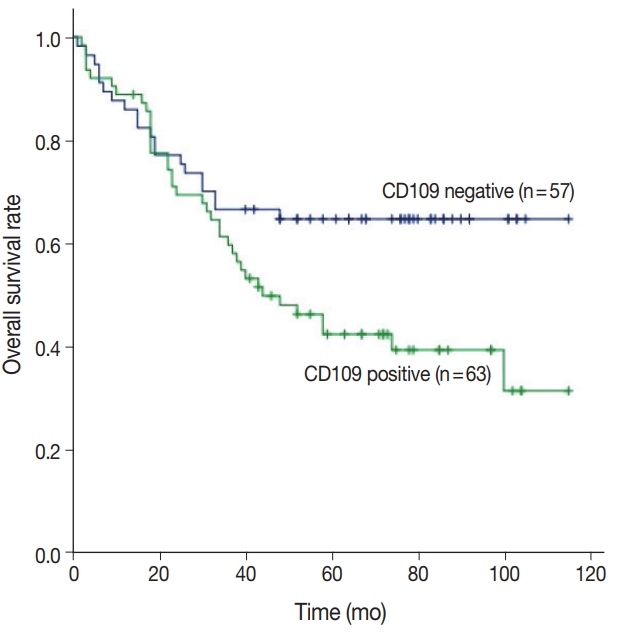

Fig. 2.

Expression of CD109 protein is associated with overall survival. Prognosis is estimated by Kaplan-Meier plots (p=.020).

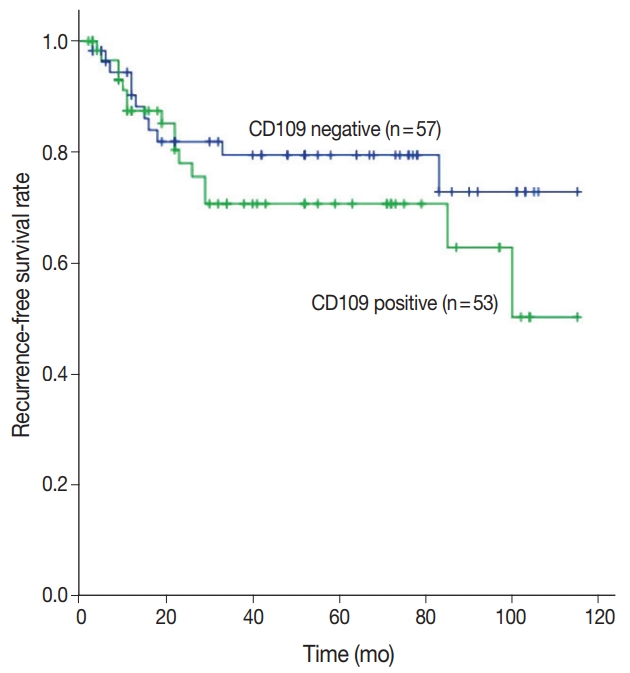

Fig. 3.

Expression of CD109 protein is not significantly associated with recurrence. Prognosis is estimated by Kaplan-Meier plots (p=.290).

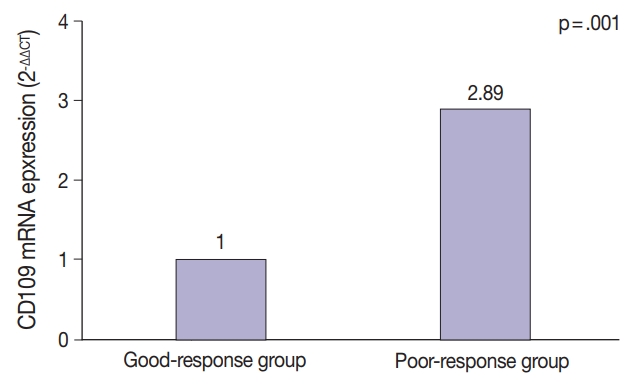

Fig. 4.

Relationship between chemoresistance and CD109 mRNA expression (n=12).
